industry no power transfer flat trailer towed by tractor

  • Application : Transfer Materials
  • Color : Customized
  • Material : Q235
  • Capacity : Customized
  • Certificates : CE ISO SGS

We're here to help:

Easy ways to get the answers you need.

(※ Click this button to inquiry)
Share with :
  • no power trailer towed by tractor
  • no power trailer towed by tractor
  • no power trailer towed by tractor
  • no power trailer towed by tractor
  • no power trailer towed by tractor
Main Products
On-rail Transfer trolleys
Custom Transfer trolleys
Trackless Transfer trolleys
Industrial Trailers
Rail Flaw Detection Vehicle

Need Help?

or Email us:

mia@perfte.com
■ Overview

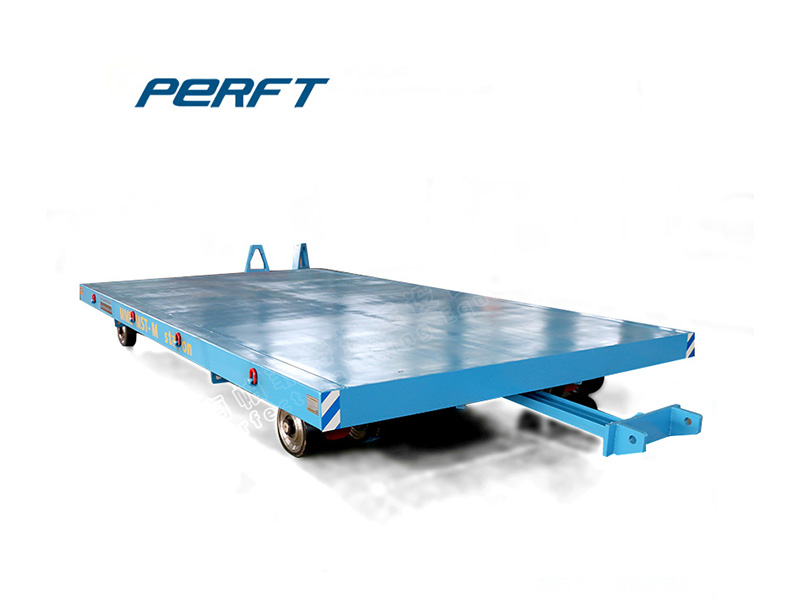

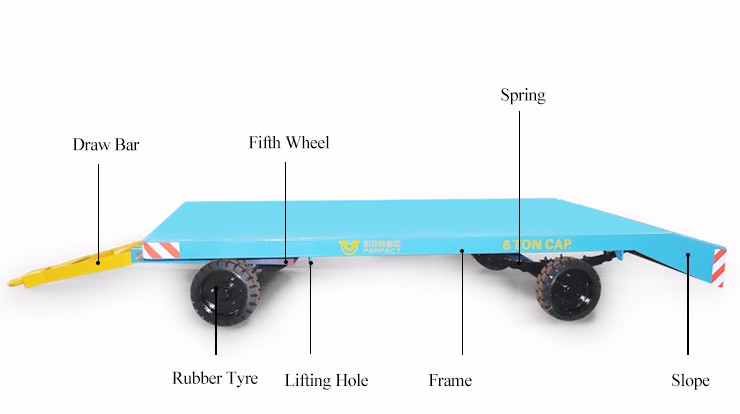

This transfer flat trailer towed by tractor is connected with the tractor by a pin, which is easy to be removed. The tow bar could be installed both the front and the tail of the transfer flat trailers towed by tractor. The four wheels of the trolley towed by tractor are connected by steel bars to assistant to the turning. This kind of trolley towed by tractor has been applied in many fields for transportation during the warehouse and workshop, which has been defined as cost savings, labor savings and highly secure during in use.

steerable explosion proof transfer flat trailers towed by tractor

■ Technical Data

No.

Item

Value

Note
1

Load Capacity

1t--300t


2

Table Size

Customized


3

Quantity of Wheel

4,8,10


4

Diameter

Design by load capacity


5

Steering Mode

Two wheels or four wheels


6

Absorber

Customized


7

Tow device

Hinge Joint


8

Height of Rail

Customized


9

Color

Yellow


10

Surface Treatment

Sand-blasting, Anti rust primer





■ Application
The trolley towed by tractor is towed by other machine such as tractor, locomotive and forklift, which have been widely applied in the cargo transportation in the airport, sea port, warehouse, train station. In order to keep stable and flexible during the turning in small space, we have optimized the steering mechanism, wheel press and frame rigidity to make it available for linkage of several trolleys. The trolley has been highly approved by our customers.
The trolley towed by tractor is towed by other machine such as tractor, locomotive and forklift, which have been widely applied in the cargo transportation in the airport, sea port, warehouse, train station. In order to keep stable and flexible during the turning in small space, we have optimized the steering mechanism, wheel press and frame rigidity to make it available for linkage of several trolleys. The trolley has been highly approved by our customers.
