4 Whels 2 Ton tractor towed Platform battery powered Transfer Cart

  • Application : Transfer Materials
  • Table Size : Customized
  • Tire Material : Press-on solid tire / Pneumatic tire
  • Capacity : 1-30T
  • Power supply : tractor towed
  • Safety facilities : brake

We're here to help:

Easy ways to get the answers you need.

(※ Click this button to inquiry)
Share with :
  • platform-transfer-cart
  • 4-wheels-2-ton-transfer-cart
  • industrial-trailer
  • tractor-trailer
  • tow-truck
Main Products
On-rail Transfer trolleys
Custom Transfer trolleys
Trackless Transfer trolleys
Industrial Trailers
Rail Flaw Detection Vehicle

Need Help?

or Email us:

mia@perfte.com
■ Overview

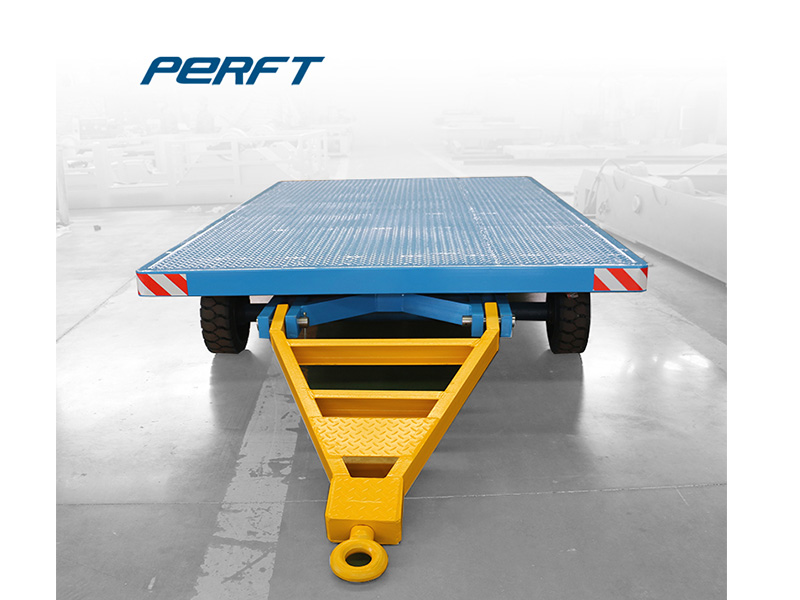

 4 Whels 2 Ton tractor towed Platform Transfer Cart

The industrial traileris driven by manual or other power machine,  According to the condition, you can choose track or trackless type transfer cart to work with the tractor.
BP transfer cart has several advantages, such as high bearing capacity, high efficiency, and lower cost.
It's very effective and simple way to improve the production efficiency.
Boosting driven device and traction device is optional if it's necessary.

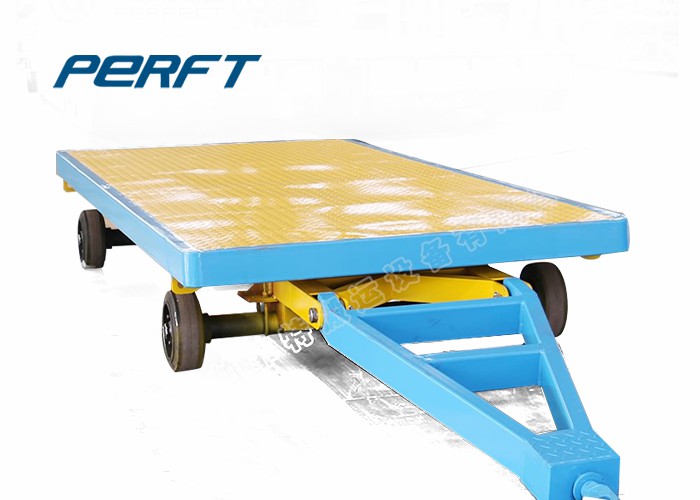

4 Whels 2 Ton tractor towed Platform Transfer Cart
■ Technical Data


Model

BP-2T

BP-10T

BP-20T

BP-30T

BP-50T

BP-63T

BP-150T

Rated load (T)

2

10

20

30

50

63

150

Table size

length(L)

2000

3600

4000

4500

5500

5600

10000

Width(W)

1500

2000

2200

2200

2500

2500

3000

Height(H)

450

500

550

600

650

700

1200

Wheel Base (mm)

1200

2600

2800

3200

4200

4300

7000

Wheel Diameter(mm)

Φ270

Φ300

Φ350

Φ400

Φ500

Φ600

Φ600

Ground Clearance (mm)

50

50

50

50

50

75

75

Max Wheel Load (KN)

14.4 42.6 77.7 110.4 174 221.4 265.2
■ Application
The tractor trailer series transfer cart has been widely applied in a lot of place, such as airports, sea ports, railway stations, factories and large warehouses, which will greatly improve the transportation efficiency and reduce the cost of forklift and labor.
