■ Overview

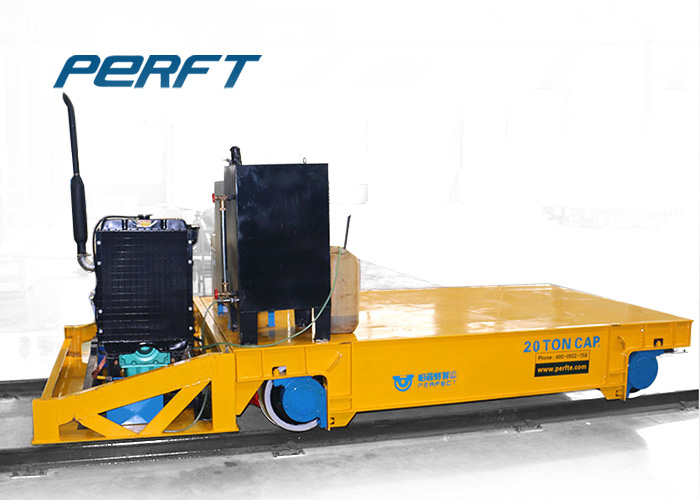

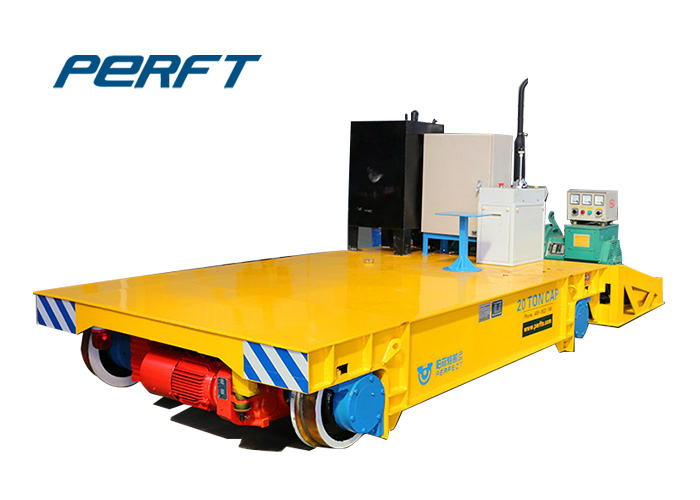

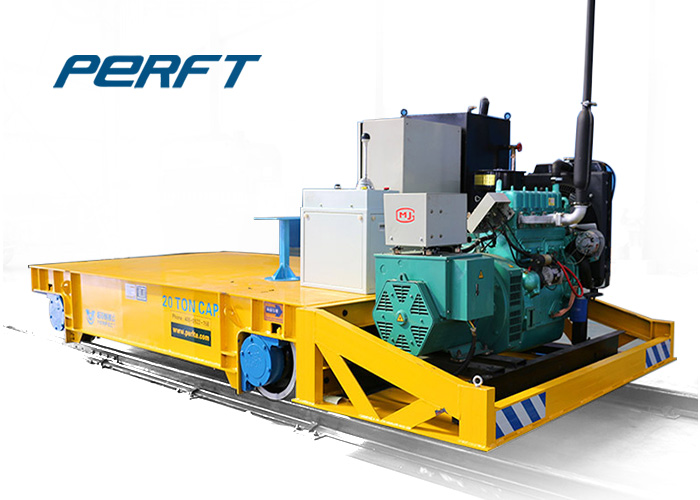

Diesel Powered Cross Rail Transfer Cart
Diesel Powered Cross Rail Transfer Cart is A combination of diesel and generator for material transport .1. A combination of diesel and generator
2. Running on rail by motor driven
3. Vehicle remote sensing control forward and backward
4. Available heavy duty material Handling
5. Can meet the no-power working environment
6. Extra long distance transportation
7. High frequency use
■ Technical Data
|
Model |
BQY-2t |
BQY-20t |
BQY-50t |
BQY-100t |
BQY-150t |
|
|
Rated Load(t) |
2 |
20 |
50 |
100 |
150 |
|
|
Table Size(mm) |
Length(L) |
2000 |
4000 |
5500 |
6500 |
10000 |
|
Width(W) |
1500 |
2200 |
2500 |
2800 |
3000 |
|
|
Heigth(H) |
450 |
550 |
650 |
850 |
1200 |
|
|
Wheel Base(mm) |
1200 |
2800 |
4200 |
4900 |
7000 |
|
|
Rail Inner Gauge(mm) |
1200 |
1435 |
1435 |
2000 |
2000 |
|
|
Wheel Diameter(mm) |
270 |
350 |
500 |
600 |
600 |
|
|
Wheel Quantity |
4 |
4 |
4 |
4 |
8 |
|
|
Ground Clearance(mm) |
50 |
50 |
50 |
75 |
75 |
|
|
Running Speed(min) |
0-25 |
0-20 |
0-20 |
0-20 |
0-18 |
|
|
Motor Power(kw) |
0.8 |
2.5 |
5.5 |
11 |
15 |
|
|
Transformer Power(KVA) |
3 |
6.8 |
10 |
30 |
30 |
|
|
Transformer Quanity |
1 |
1 |
1 |
1 |
1 |
|
|
Running Distance(m) |
70 |
70 |
50 |
50 |
50 |
|
|
Max Wheel Load(KN) |
14.4 |
77.7 |
174 |
343.8 |
265.2 |
|
|
Reference Weight(t) |
2.8 |
5.9 |
8 |
14.6 |
26.8 |
|
|
Recommended Rail Model |
P15 |
P24 |
P43 |
QU100 |
QU100 |
|
■ Application
It is suitable for use in field places where is no power and power supply are inconvenient, or heavy material transportation with high frequency and Extra long distance.
