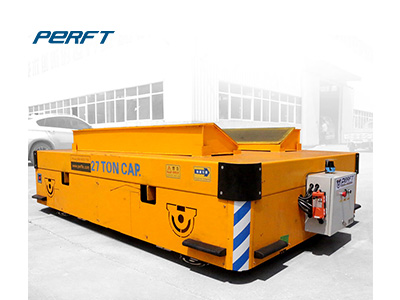

Automated Trackless Die Transfer Trolley On Cement

  • General Application : transfer hot rolled coil/steel coil/aluminium coil etc
  • Loading Capacity : 20 Ton, according your needs
  • Feature : Rubber wheel & 360 degree turn
  • Safety Facilities : Buffer, Light Alarm, E-STOP, Dead man control, etc
  • Exported Countries : Germany, America, Mexico, Australia, Malaysia, India, Nerthland, etc
  • Certification : ISO9001, CE, SGS

We're here to help:

Easy ways to get the answers you need.

(※ Click this button to inquiry)
Share with :
  • die-transfer-trolley
  • steerable-coil-transfer-trolley

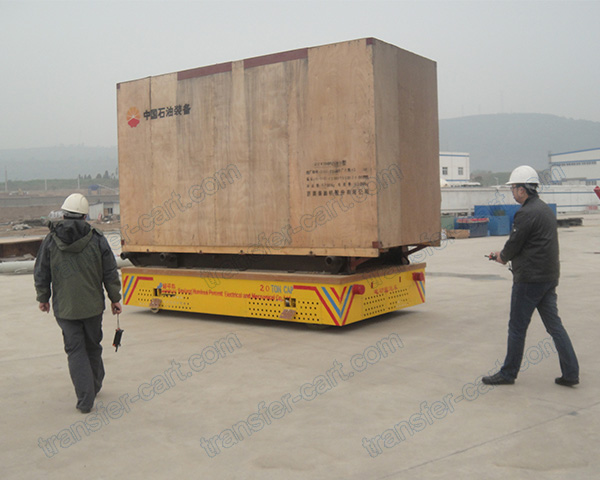

  • steerable-transfer-car-on-cement-floor

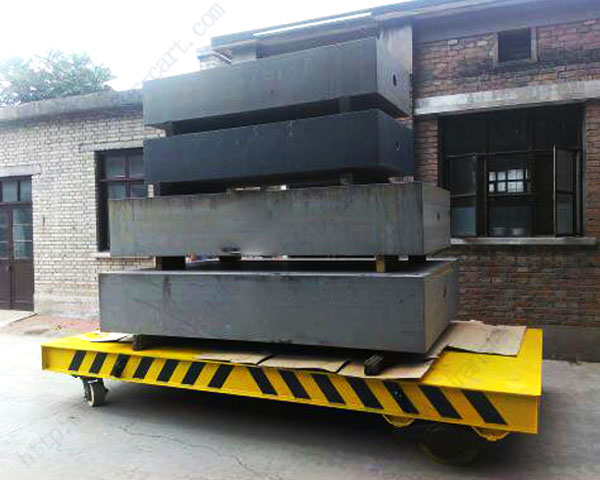

  • steerable-transfer-truck
  • 20t-transfer-vehicle-on-shop-floor
Main Products
On-rail Transfer trolleys
Custom Transfer trolleys
Trackless Transfer trolleys
Industrial Trailers
Rail Flaw Detection Vehicle

Need Help?

or Email us:

sale@perfte.com

Follow Us

Facebook Linkedin
■ Overview
Automated Trackless Die Transfer Trolley On Cement
 Product Brief of trackless die transfer trolley

1, Trackless Die Transfer Trolley powered by battery, transfer heavy duty cargo from one site to other in factory.
2, Conditions: It is running on concrete floor

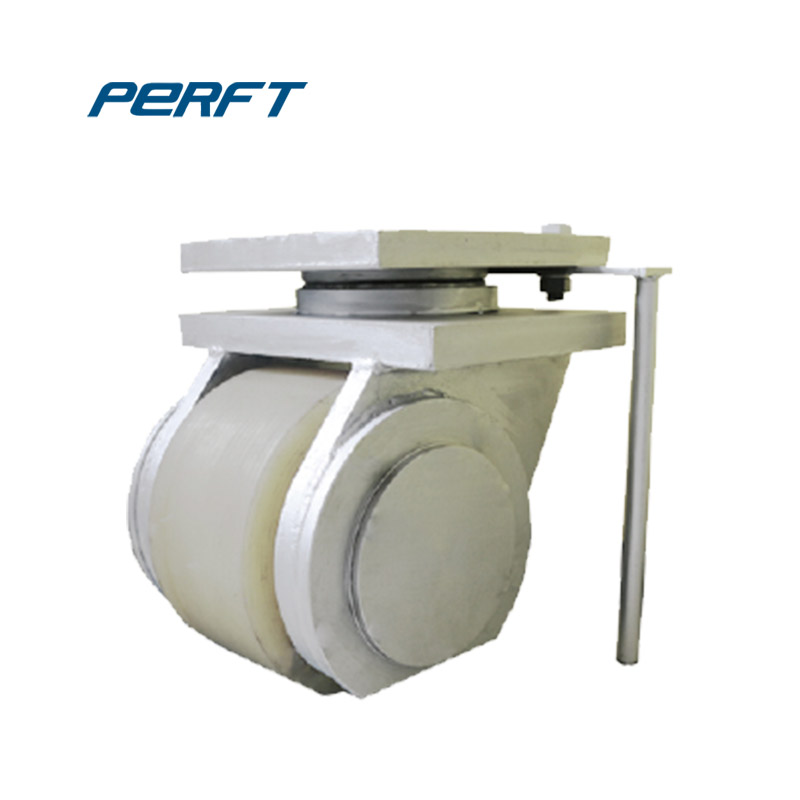

3, Main parts: cart frame, rubber wheel, gearmotor, reducer, braking system, push button pendant, remote control, electrical control box, etc.
4, Advantages: good turning capacity with 360 degree turn; traveling on concrete floor; unlimited running distance; no rails; easy maintenance
5, Operation Way: push button & wireless remote control

Trackless Transfer Trolley Product Features

• Electric powered, battery, cable and low-voltage rails are available.
• Both remote control and push button pendant is available.
• Safety facilities, such as buffers, proximity switch, sound and light alarm, dead man control, etc.


■ Technical Data
Automated Trackless Die Transfer Trolley On Cement

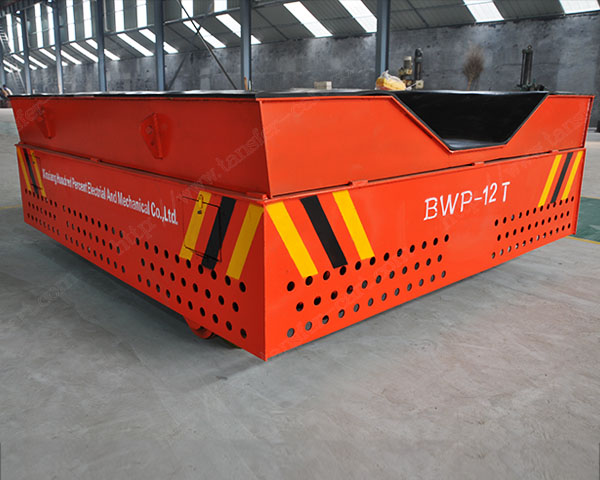

Model BWP-5t BWP-12t BWP-30t BWP-40t BWP-80t
Rated Load(t) 5 12 30 40 80
Table Size(mm) Length(L) 3500 4000 4500 5000 6000
Width(W) 2000 2000 2200 2500 2600
Height(H) 500 550 600 750 800
Wheel Diameter(mm) Ф300 Ф350 Ф400 Ф450 Ф600
Wheel Quantity 4 4 4 4 8
Running Speed(m/min) 0-25 0-20 0-20 0-20 0-18
Battery Voltage(V) 36 48 48 72 72
Running Time When Full Load 5.4 4.3 3.3 3.6 2.9
Reference Weight(t) 3.6 5.2 7.2 8 12.8
Recommended Rail Model P18 P24 P38 P43 --
■ Application
Application of Trackless Die Transfer Trolley
The coil transfer car can be used in the following ways:
It can be used in steel/aluminium factory transferring steel/aluminium coil from one workshop to another;
♦ It also can be applied in paper roll plant transporting paper roll from one bay to another in factory;
♦ Other fields: transport heavy machinery or equipment;  Painting shops and Sand blasting room; shipbuilding, quarries, warehouses and multi-bay workshops, etc.
