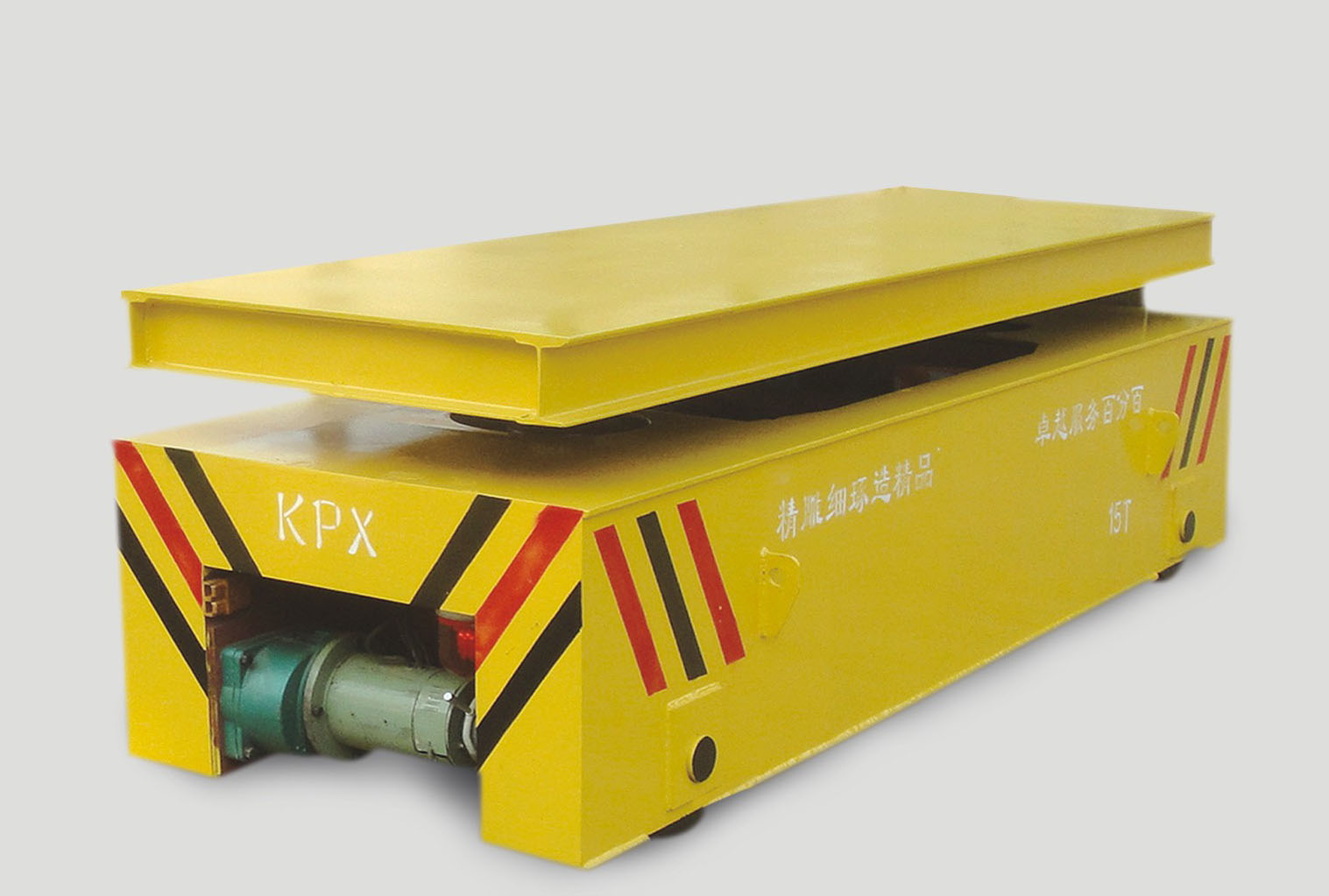

Battery powered hydraulic lifting transfer platform

  • Application : transfer cargoes, such as, steel products
  • Capacity : 20 ton

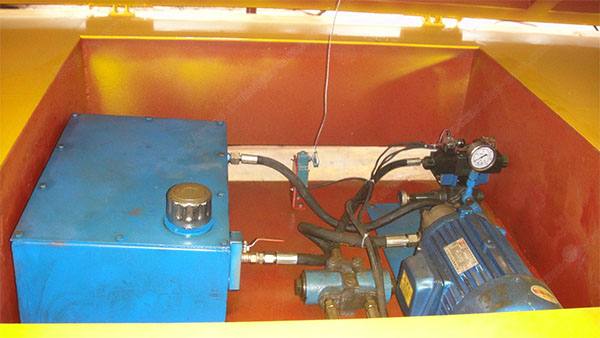

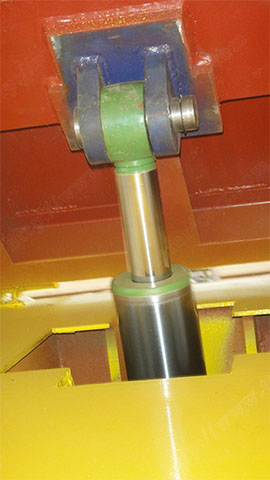

  • Feature : with hydraulic lifting table

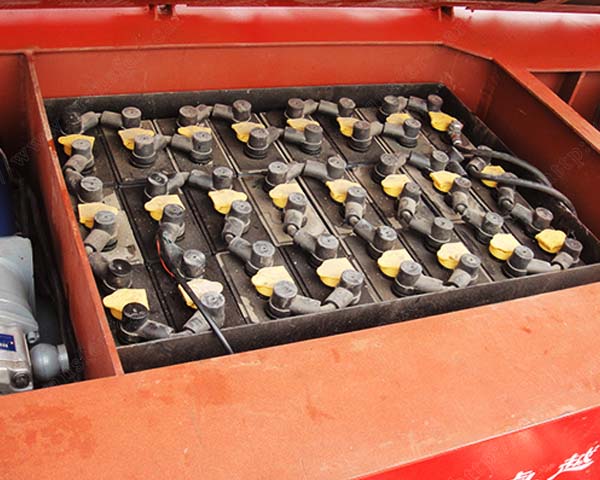

  • Power source : battery
  • Motor brands : SEW, Simens, ABB, etc
  • Certification : ISO9001, CE

We're here to help:

Easy ways to get the answers you need.

(※ Click this button to inquiry)
Share with :
  • heavy-duty-transfer-carriage
  • Two-transfer-trolleys

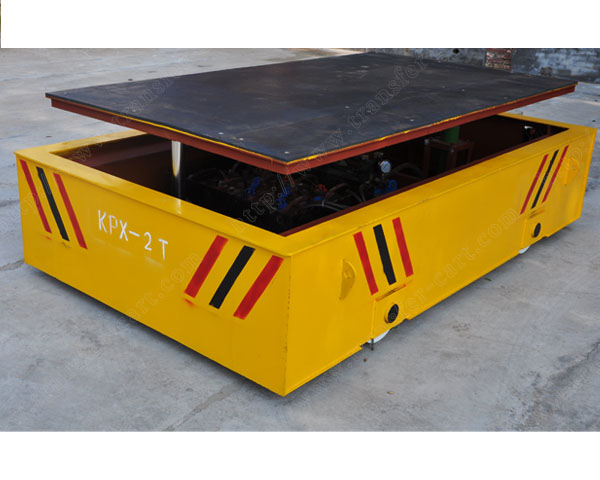

  • motorized-transfer-truck

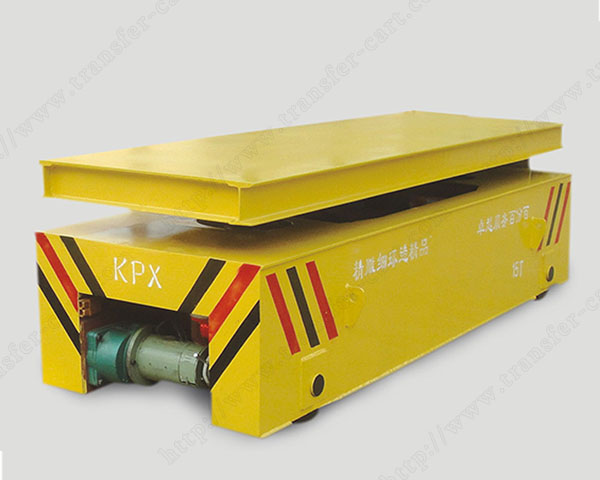

  • battery-powered-cart
  • transfer-vehicle-on-rail
Main Products
On-rail Transfer trolleys
Custom Transfer trolleys
Trackless Transfer trolleys
Industrial Trailers
Rail Flaw Detection Vehicle

Need Help?

or Email us:

sale@perfte.com

Follow Us

Facebook Linkedin
■ Overview
Battery powered hydraulic lifting transfer platform

► Brief Introduction
• 14 years manufacturing experiences.
• Our products have achieved CE & SGS certificates; We also passed ISO9001 certification.
• Production Capacity: 600 sets per year.
• For all the transfer trolley, they all can be customized.
• Experienced engineers, we've got a patent for steerable transfer car on cement.

General Application of Transfer Trolley
Painting room
Sand blasting booth
Steel mill
Paper roll factory

Additionally:
1, The transfer car is suitable for various industries, steel mill, transfer steel products such as steel structure, steel pipe, steel billets, steel ladle and coil, etc from one location to another;
2, Other industries: shipbuilding, quarries, warehouses and multi-bay workshops, etc.



■ Technical Data
Technical Parameter of the Hydraulic Transfer Platform
Model KPX-5t KPX-16t KPX-50t KPX-80t KPX-150t
Rated Load(t) 5 16 50 80 150
Table Size(mm) Length( L) 3500 4000 5500 6000 10000
Width( W) 2000 2000 2500 2600 3000
Heigth( H) 500 550 650 800 1200
Wheel Diameter(mm) Ф300 Ф350 Ф500 Ф600 Ф600
Wheel Quantity 4 4 4 4 8
Running Speed(m/min) 0-25 0-20 0-20 0-20 0-18
Battery Voltage(V) 36 48 48 72 72
Running Distance for One Charge(Km) 8.1 5.1 4 4.3 3.2
Reference Weight(t) 3.6 5.5 8 12.8 26.8


■ Application
General Introduction

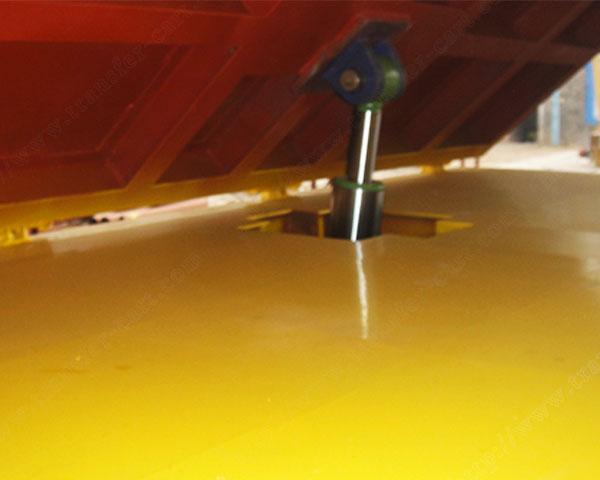

1. The transfer trolley is running on track and equipped with hydraulic lifting table.
2. The hydraulic rail transfer cart is powered by battery and can run freely without distance limitation.
3. This cart has the advantages of conveinent operation and easy lifting.

► Features of the Transfer Platform
Lifting function.
• Dumping function.
• Availability of cable power in case of short running distance.
• Two carts can lift load simltaneously.

Special Use
The transfer trolley with hydraulic lifting table are applied to transfer heavy cargoes, for example, two carts can lift heavy equipment together. The lifting height can be designed according to customer requiements. We can design whole lifting table and also seperate lifting table.

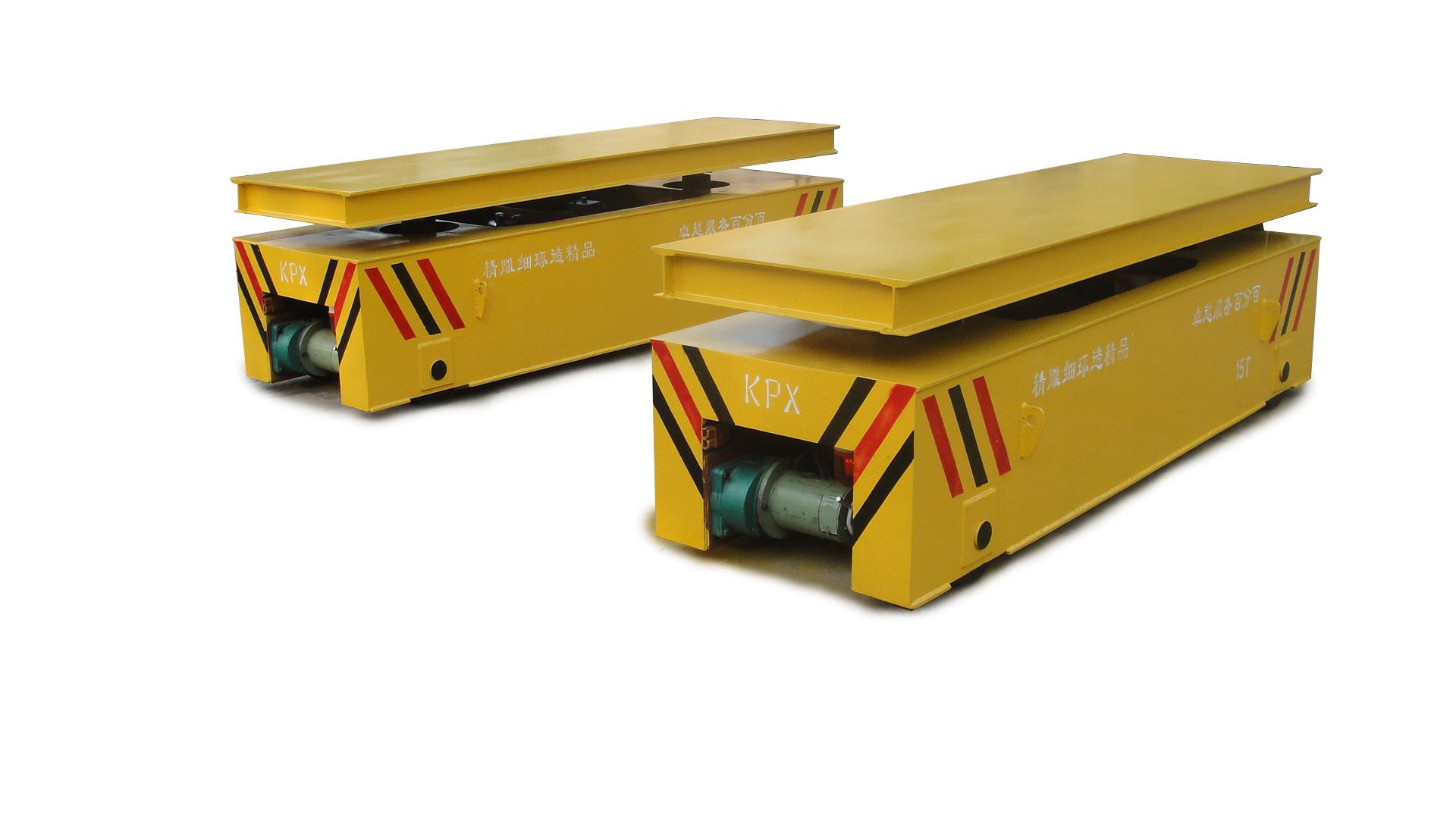

 Two-transfer-trolleys KPX
