Industrial Heavy duty agv Trolley With Low Price

  • Load capacity : 1-50T
  • Table size : 4000*2000*600mm (customized)
  • Power supply mode : battery
  • Speed : 50m/min(adjustable)
  • Certificates : CE ISO SGS
  • Operation way : remote control/PLC

We're here to help:

Easy ways to get the answers you need.

(※ Click this button to inquiry)
Share with :
  • agv-trolley
  • warehouse transfer trolley
  • industry steerable transfer trolleys
Main Products
On-rail Transfer trolleys
Custom Transfer trolleys
Trackless Transfer trolleys
Industrial Trailers
Rail Flaw Detection Vehicle

Need Help?

or Email us:

■ Overview

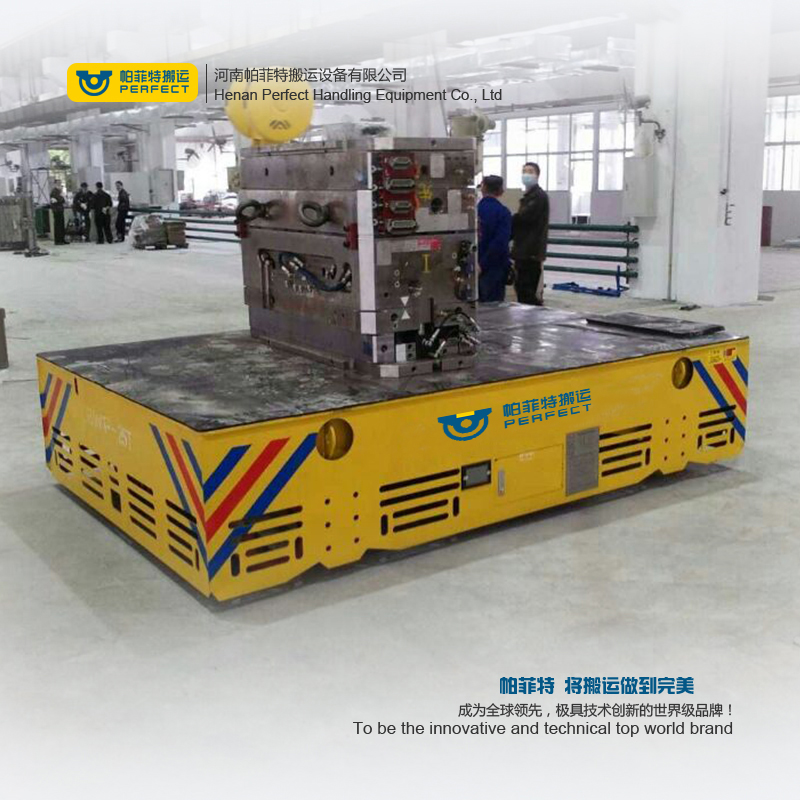

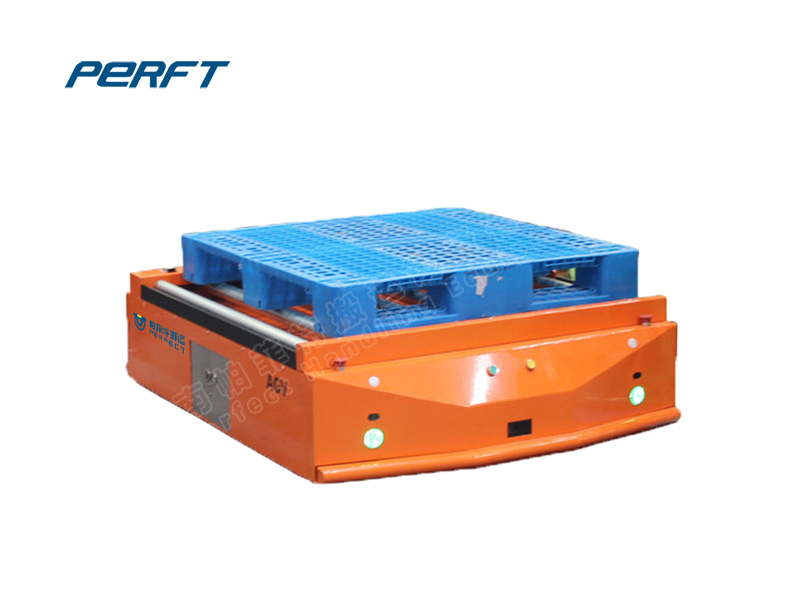

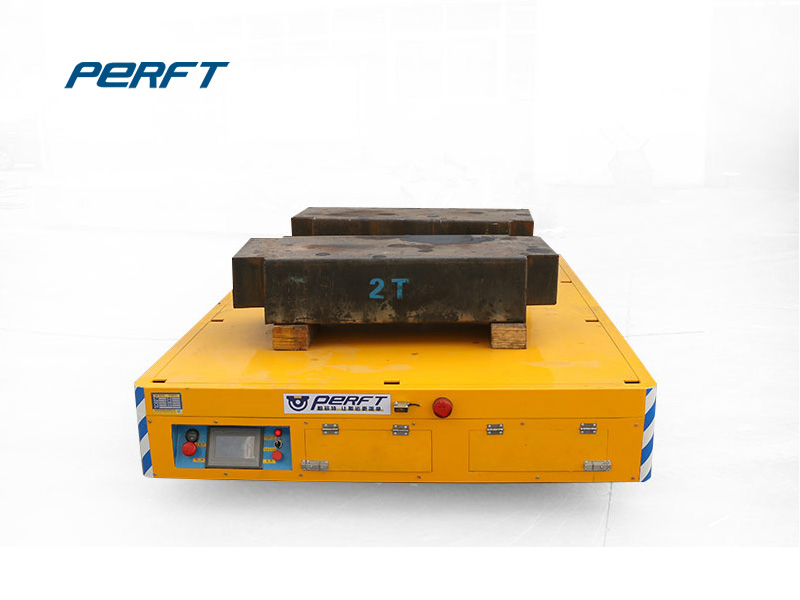

Industrial Heavy load agv Trolley With Low Price

AGV transfer car is powered by storage battery. It is consist of battery, motor, reducer, cart frame, electric appliance, etc.
There are the pendant control and wireless control two types of control methods. AGV use dual-drive and two-way mode, can be load and move flexibly. Adopt programmable controller, system is stability. Using laser obstacle detection sensor to avoid obstacles. meanwhile, mechanical anti-collision was adopted, double protection, realize safe and reliable operation, finally reach the goal point.
AGV can reduce labor costs, High degree and efficiency of automation, Multi point automatic precise docking, can easily communicate with friction line, roller line and other conveyance equipment, realize automatic loading and unloading, start-stop etc, all automatic operation.

■ Technical Data
Model agv-5t agv-12t agv-30t agv-40t agv-50t
Rated Load(t) 5 12 30 40 50
Table Size(mm) Length(L) 3000 4000 4500 5000 6000
Width(W) 2000 2000 2200 2500 2600
Heigth(H) 500 550 600 750 800
Wheel Diameter(mm) Ф300 Ф350 Ф400 Ф450 Ф600
Wheel Quantity 4 4 4 4 8
Running Speed(m/min) 0-25 0-20 0-20 0-20 0-18
Battery Voltage(V) 36 48 48 72 72
Running Time When Full Load 5.4 4.3 3.3 3.6 2.9
Max Wheel Load(KN) 25.8 64.5 174 278.4 265.2
Reference Weight(t) 3.6 5.2 7.2 8 12.8
■ Application
Battery powered;
Multi point automatic precise docking;
Automatic robot unmanned operation;
High degree and efficiency of automation;
Strong anti-interference ability to the external environment;
Can operated in severe environment, such as High temperature and explosive;
Broad requirements for operators, strong operational stability;
The light-out configuration save energy consumption;
Using AGV can reduce labor cost and remove overtime or turnover cost;
Absolute security, guarantee the safety of factory device, reduce loss of product or shipment;
Adjust to all kinds of stand, pallet transport or manufacturing operations;
