paper roll handling sliding wire powered cross-bay transfer equipment

Core Product Advantages

1. Stable and reliable power supply: The sliding wire technology avoids cable dragging and wear, reduces power failure risks, and meets the demand for continuous paper roll production.
2. Load capacity adapted to paper roll characteristics: Customizable design to realize stable transfer of paper rolls with different weights and diameters.
3. Flexible cross-bay movement with high positioning accuracy: Shortens the transfer time of paper rolls between different production areas and improves overall production efficiency.

Key Product Features

1. Compact structure and small space occupation: Adapts to complex workshop layouts without affecting the normal operation of other equipment.
2. Easy operation: Supports manual, semi-automatic or fully automatic control, reducing manual intervention costs and the risk of paper roll damage.
3. Excellent protection performance: Targeting the moisture and scratch sensitivity of paper rolls, the equipment’s surface treatment and transfer mechanism design emphasize protection, while adapting to workshop conditions such as dust and humidity.
4. Low maintenance cost: The sliding wire and transfer mechanism have a low failure rate, and wearing parts are easy to replace, reducing downtime for maintenance.

• Established in 2003, people of PERFECT has gong a long way in manufacturing electric rail transfer vehicle, especially the busbar power transfer vehicle. In these years, we never give up every requirements from customer, because we have our goal to be a global manufacuturer and let our customer satisfied. This is our most honour.
• With over 14 years' manufacturing experience, we have passed ISO9001 certificated manufacturer of transfer vehicle. People of PERFECT is always ready to learn from our customers. Just as our chief manager has said, we make a progress from our customer. That is the reason we are growing quickly and still have great energy to develop stronger.
• What's more, each of PERFECT product goes through a series of thorough testing and precise steps before being shipped on board. With worker's scrupulous effort and updated facilities, we have the confidence to withstand the most strict testing from our customer.

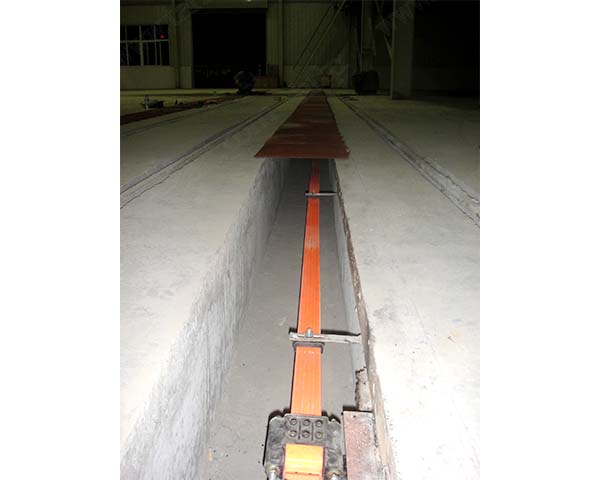

♦ It is equipped with Busbar Power Supply System.
♦ It can offer unlimited distance of operation.
♦ Load capacity from 1t to 300t.
♦ It is widely applied for Hoist and Crane manufacturing industry,metallurgical industry and other industry.

Model		KPC-2t	KPC-5t	KPC-10t	KPC-16t	KPC-20t	KPC-25t
Rated Load（t）		2	5	10	16	20	25
Table Size(mm）	Length( L)	2000	3500	3600	4000	4000	4500
	Width( W)	1500	2000	2000	2000	2200	2200
	Heigth( H)	450	450	500	500	550	600
Wheel Diameter（mm）		Ф270	Ф300	Ф300	Ф350	Ф350	Ф400
Wheel Quantity		4	4	4	4	4	4
Running Speed（m/min）		25	25	25	20	20	20
Motor Power（Kw）		0.8	1.5	1.5	2.2	2.5	3
Max Wheel Load（KN）		14.4	25.8	42.6	64.5	77.7	94.5
Reference Weight（t）		2.3	3.3	3.8	5	5.5	6
Recommended Rail Model		P15	P18	P18	P24	P24	P38

Core Application Sites

1. Large paper mills: Used for cross-bay paper roll transfer from the paper machine workshop to the rewinding workshop and storage area, connecting production and storage links.
2. Carton/packaging factories: Adapt to cross-workshop transfer of corrugated paper, containerboard and other paper rolls, linking processes such as printing, die-cutting and forming.
3. Printing/publishing houses: Realize precise cross-area transportation of printing paper rolls such as newsprint and coated paper from the raw material warehouse to the printing workshop.
4. Toilet paper/hygiene paper processing plants: Used for efficient transfer of large shaft paper rolls between papermaking, slitting and packaging workshops, matching the continuous production rhythm.

Scene Adaptation Requirements

• The site must have cross-bay (cross-workshop/cross-area) material flow needs, and paper roll transfer is a fixed and high-frequency process.
• The workshop layout allows equipment track laying, and can adapt to the sliding wire installation and power supply environment (dry/general dust working conditions).
• It needs to meet the transfer and load-bearing requirements of paper rolls with different weights (from lightweight paper rolls to heavy large shaft paper) and different diameters.

---

---




► Custom Design
1,Custom design can be realized both in the applied environment and special table size.
2, Anti-explosion busbar powered transfer vehicle is designed to transfer heavy cargoes in special environment such as coal and gas industry.
3, Coil busbar transfer vehicle is designed to transfer cargoes of special shapes such as the coils. In this way, it is not easy for coils to fall off the table, because the table has a special shape which can place coils firmly.

► After Sale Service
♦ Our commitment: The load bearing safety factor of the vehicle is no less than 120%.
♦ Freely design the auxiliary device or foundation drawing, and offer the technical service and drawing material.
♦ 16 hours engineering service and 24 hours internet service for our customers.
♦ During the warranty period, if our products can't work normally, we can support you repair technology or replace relevant parts for you within 24 hours.
♦ Solving the quality problem within 24 hours, serious attitude from beginning to end. Value the reputation and Preserve the image of our company.
