The Packing And Shipping:
The Main Body Of The Machine Is Packed With High-Quality Waterproof Plastic Cloth, The Electrical Parts Are Specially Protected, And The Spare Parts Are Packed In Standard Export Fumigation Free Wooden Boxes.
The Details Of Rail Transfer Cart:
1.Emergency Stop Button
2.Sound And Light Alarm
3.Intelligent Charger,And So On.
The Advantages Of Rail Transfer Cart:
1.Imported And Domestic Industrial Wireless Remote-Control Devices Are Optional;
2.Optional Matching Automatic Parking, And Alarming When Encountering Person 2 Meters Away.
3.The Largest Capacity Can Reach To 500t
4.AC+DC Electric Engine , Diesel Engine Or Pneumatic Engine
5.Low Noise And Do Not Pollute The Environment
The Application Field Of Product:

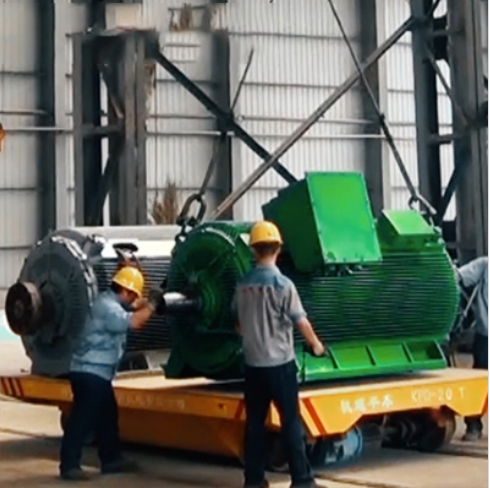

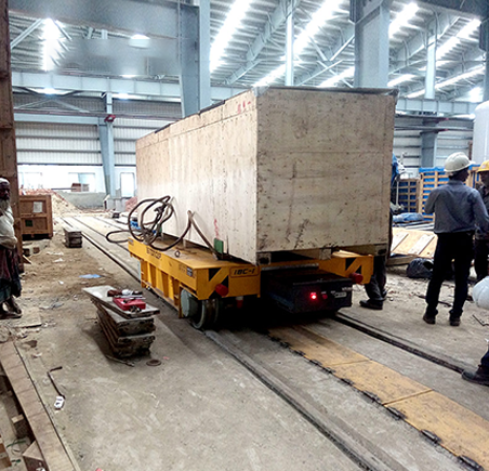

Rail Transfer Cart Is Widely Used In Machine Manufacturing, Warehouse, Metallurgy Factory, Etc. As A Workshop Internal Coordination Crane To Transport Heavy Objects Across.
| Type | BDG-2t | BDG-20t | BDG-50t | BDG-100t | BDG-150T |
The BDGS Series Transfer Vehicle Is Powered By The Busbar.The Alternative Current Is Supplied Consistently To The Pulling Motor By Slide Knife Taken From Sliding Contact Line Through Electric Control System.The Sliding Contact Line Can Be Installed In The Middle Of The Tracks Or By The Outside Of The Tracks Or In The Trench Or Under The Roof Of The Plant. Positioning Fixture, Lift Platform, Clamping Device And Other Auxiliary Device Are Optional To Meet Different Demands On Various Occasions. The BHX Series Agv Transfer Vehicle Is Suitable In Inflammable Environment And In High Frequency. Customized design and manufacturing 1.Our professional design team provides |
|
| Bated Load(t) | 2 | 20 | 50 | 100 | 150 | ||
| Table Size(mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 | |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | ||
| Heigth(H) | 450 | 550 | 650 | 900 | 1200 | ||
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | ||
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 | ||
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 | ||
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 | ||
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 | ||
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | ||
| Motor Power(kw) | 1 | 2.2 | 5 | 10 | 15 | ||
| Battery Capacity | 180 | 180 | 330 | 440 | 600 | ||
| Battery Voltage | 24 | 48 | 48 | 72 | 72 | ||
| Running Time When Full Load | 4.32 | 4 | 3.3 | 3.2 | 2.9 | ||
| Running Distance for One Charge(Km) | 6.5 | 4.8 | 4 | 3.8 | 3.2 | ||
| Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | 265.2 | ||
| Reference Weight(t) | 2.8 | 5.9 | 8 | 14.6 | 26.8 | ||
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 | ||
