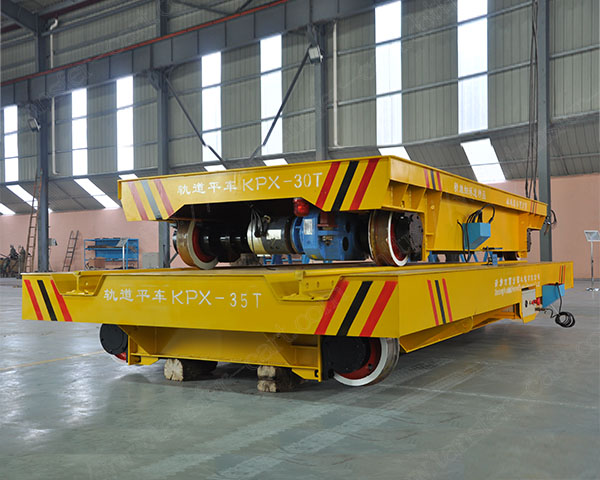

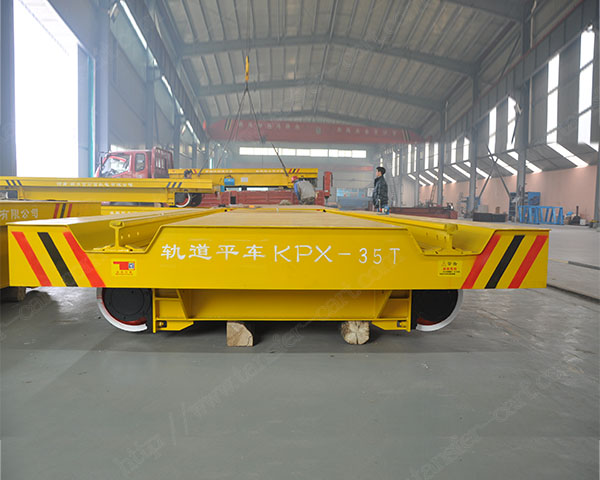

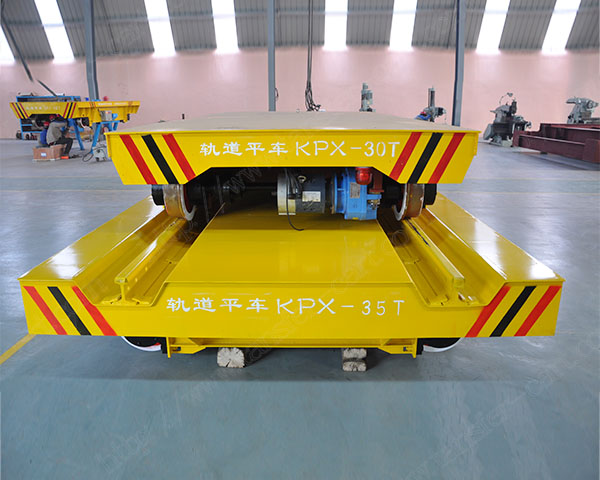

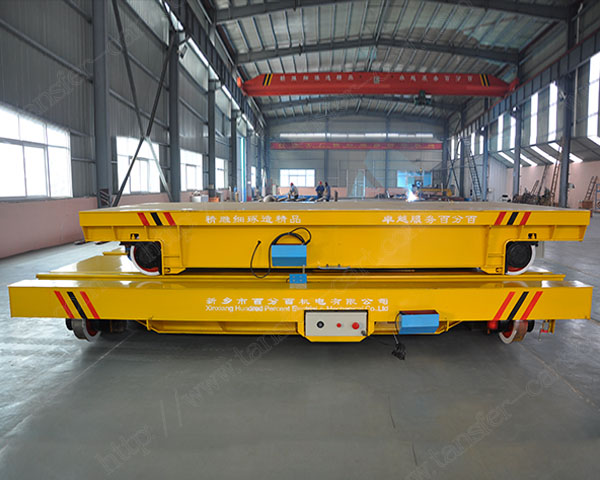

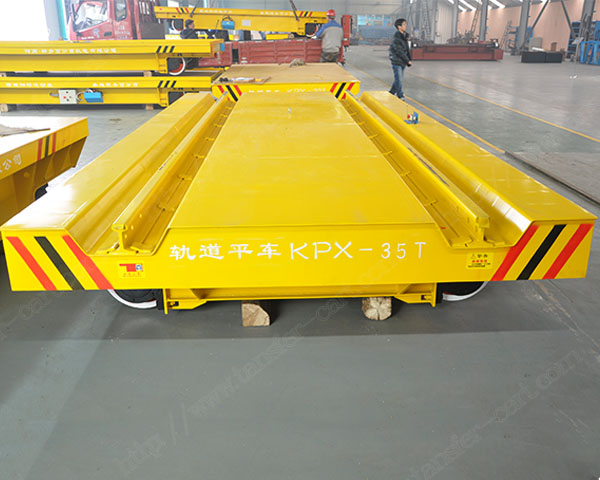

Heavy Loads Steel Mill Flatbed Transfer Table

  • Loading Weight: : 1-300 MT
  • Power: : Bus bar, festoon cable, battery
  • Bus Bar Type: : under-ledge bus bars, over head bus bar
  • Features: : Customized platform size& loads, multiple tracks on traverser,transducer etc.
  • Special Design: : Customized design for specific requirement, like use transfer table to enter stress relieving furnace
  • Options: : Free-standing Operator Control Pedastals;Variable Frequency; Electric Disc Brakes etc

We're here to help:

Easy ways to get the answers you need.

(※ Click this button to inquiry)
Share with :
  • transfer-table
  • traverser
  • motorized-transfer-table
  • battery-powered-transfer-wagon
  • large-gauge-transfer-carriage
Main Products
On-rail Transfer trolleys
Custom Transfer trolleys
Trackless Transfer trolleys
Industrial Trailers
Rail Flaw Detection Vehicle

Need Help?

or Email us:

jack@perfte.com
■ Overview

Heavy Loads Steel Mill Flatbed Transfer Table


Product Information
Working Principle: KPC series' track traverser can be used in the bad environment, for example, high-temperature condition. Because of its simple structure, low cost and not so strict requirement on the construction of the rails, it is the first choice for the assembly lines of the workshops. This series transfer cart is suitable for the conditions of short running distance which is no more than 50m,high using frequency, low cart's height and assembly line work.

Characteristics of the Track Traverser
• Low height;
• Safe and cost-effectively;
• No strict requirement for the railways;
• The first choice for the assembly lines of the workshops;
• Suitable to transfer vehicles or equipment across a trench;
• Interbay transfer;
• Long service life;
• Powered by sliding wire/busbar;


■ Technical Data
Model KPC-2t KPC-20t KPC-50t KPC-100t KPC-150t
Rated Load(t)

2

20 50 100 150
TableSize(mm) Length(L) 2000 4000 5500 6500 10000
Width(W) 1500 2200 2500 2800 3000
Heigth(H) 450 550 650 850 1200
Wheel Base(mm) 1200 2800 4200 4900 7000
Rail Inner Gauge(mm) 1200 1435 1435 2000 2000
Wheel Diameter(mm) 270 350 500 600 600
Wheel Quantity 4 4 4 4 8
Ground Clearance(mm) 50 50 50 75 75
Running Speed(min) 25 20 20 20 18
Motor Power(kw) 0.8 2.5 5.5 11 15
Max Wheel Load(KN) 14.4 77.7 174 343.8 265.2
Reference Weight(t) 2.3 5.5 7.6 13.9 26



■ Application
Special Use of The Transfer Table

♦ The track traverser can be applied to transfer vehicles across a ditch/trench for interbay transport;
♦ It is suitable for transferring locomotive for maintenance or something else;
♦ The traverser, also called transfer table, is used to transfer machinery or equipment from one location to another;
♦ It can be used in such industries, such as steel mill, transfer steel products such as steel structure, steel pipe, steel billets, steel ladle and coil, etc from one location to another; Paper roll plant; transfer paper coil; Painting shops; transfer workpiece into the painting room; Sand blasting room. Other industries: shipbuilding, quarries, warehouses and multi-bay workshops, etc.
