Heavy Load Material Rail Flatbed Transfer Carts For Metallurgy Factory

  • Application : metallurgy industry
  • Power Supply : cable / battery
  • Feature : temperature resistance/heavy load/ smooth start and stop/dual motor system
  • Capacity : 1-300T
  • Certificates : CE ISO SGS

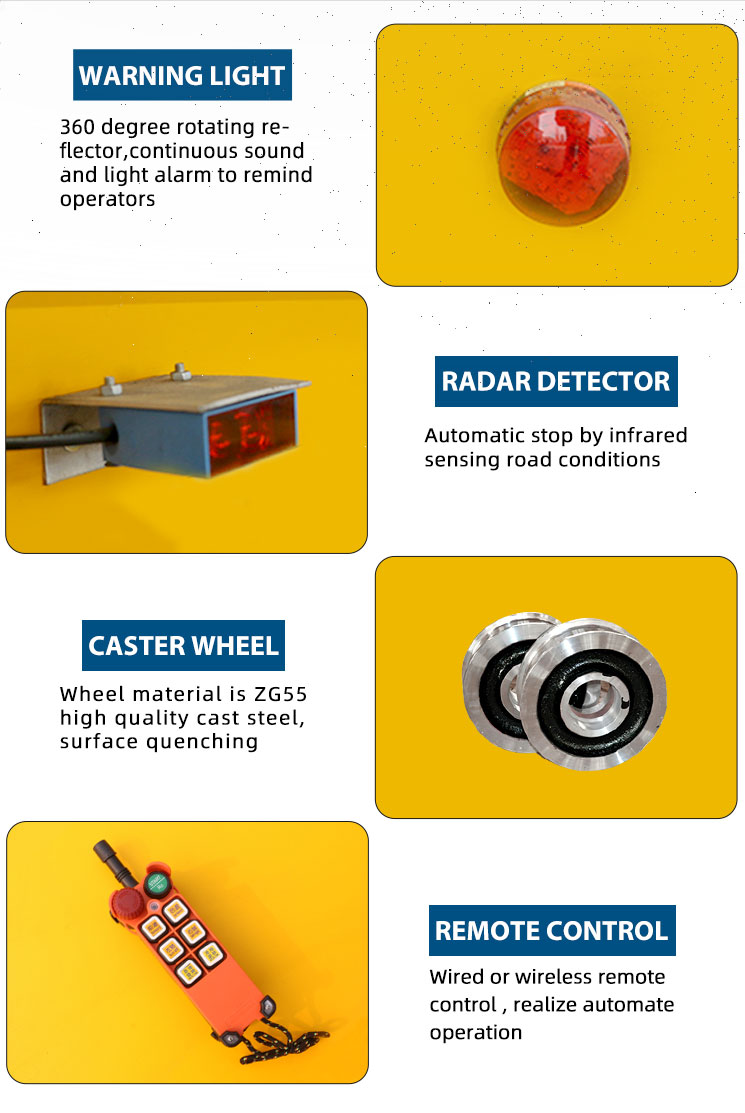

  • Safety facilities : Buffer, limit switch, etc

We're here to help:

Easy ways to get the answers you need.

(※ Click this button to inquiry)
Share with :
  • heavy-load-rail-transfer-carts
  • flatbed-transfer-cart
  • heavy-material-transfer-cart
  • metallurgy-rail-transfer-cart
Main Products
On-rail Transfer trolleys
Custom Transfer trolleys
Trackless Transfer trolleys
Industrial Trailers
Rail Flaw Detection Vehicle

Need Help?

or Email us:

jack@perfte.com
■ Overview

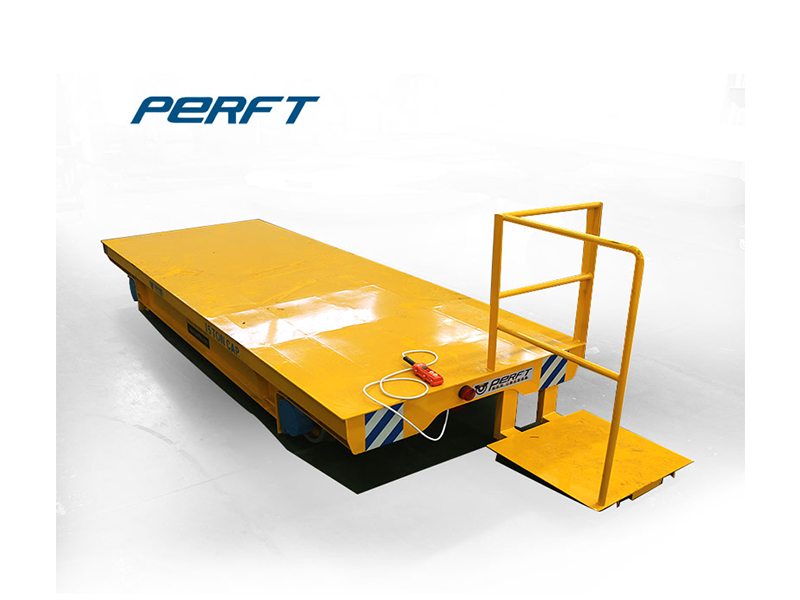

 Heavy Load Material Rail Flatbed Transfer Carts For Metallurgy Factory

The Heavy Load Material Rail Flatbed Transfer Carts For Metallurgy Factory is specially designed to transfer the high-temperature material is available in inflammable and explosive environment.
The heat insulating material and explosion-proof motors are used in theHeavy Load Material Rail Flatbed Transfer Carts For Metallurgy Factory to resist the high temperature and the cart's materials, driving system and electrical control should be specially designed.
The tractor motor of the Heavy Load Material Rail Flatbed Transfer Carts For Metallurgy Factory is designed in slowly start and stop to reduce the inertia of the car and avoid molten steel or slag from splashing.
Usually the Heavy Load Material Rail Flatbed Transfer Carts For Metallurgy Factory prepare two motors for safe production. while the main motor is damaged by the high temperature the reserve motor can continue work in emergency situations.
Power supply can be selected according to specific work conditions.


■ Technical Data


Model

BJT-2t

BJT-20t

BJT-50t

BJT-100t

BJT-150t

Rated Load(t)

2

20

50

100

150

Table Size(mm)

Length(L)

2000

4000

5500

6500

10000

Width(W)

1500

2200

2500

2800

3000

Heigth(H)

500

600

700

1000

1200

Wheel Base(mm)

1200

2800

4200

4900

7000

Rail Inner Gauge(mm)

1200

1435

1435

2000

2000

Wheel Diameter(mm)

270

350

500

600

600

Wheel Quantity

4

4

4

4

8

Ground Clearance(mm)

50

50

50

75

75

Running Speed(min)

0-25

0-20

0-20

0-20

0-18

Motor Power(kw)

0.8

2.5

5.5

11

15

Running Distance(m)

25

30

50

50

50

Max Wheel Load(KN)

14.4

77.7

174

343.8

265.2

Reference Weight(t)

2.5

5.6

7.8

14.1

26.2

Recommended Rail Model

P15

P24

P43

QU100

QU100

■ Application
Heavy Load Material Rail Flatbed Transfer Carts For Metallurgy Factory is powered by cable running on rail with high temperature resistance, heavy load, smooth start and stop, dual motor system feature is commonly applied to transfer steel ladle, aluminum ladle, lead ladle, steel slag etc.
