heavy load rail transfer carts

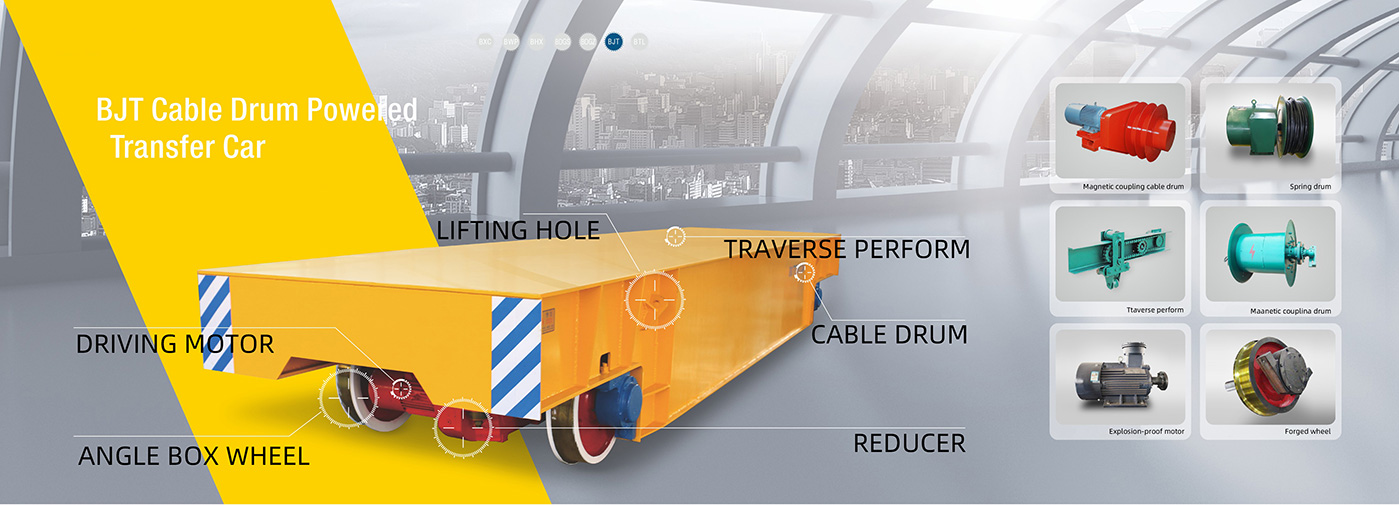

BJT Series transfer car is powered by cable .The power source 380v-690v alternating -current is supplied to the traction motor by cable ,which is controlled by control system to make the car start ,stop ,move forward ,move backward ,etc.The operation voltage is 360v which is safe voltage .Cable is collected and released by coiling device mounted underneath the car.The car can realize full automatic operation by PLC system .The series car can be applied in the environment such as severe environment ,high temperature ,anti-explosive etc.Simple structure and low cost make it popular for workshop transportation .Compared with BXC series transfer car ,there is no using time limitation ,and compared with BDG Series ,it has no strict demand for rail erection .The series car can be applied in the occasion with any loading capacity and high using frequency .If the running distance is beyond 50m, The trolley needs to install cable arrange to help with cable rolling .The max running distance is up to 200-400mm.The working principle of this type of electric flat cart is as follows: the flat cart is powered by cables and driven to walk by motors. The flat cart is equipped with on-board control buttons, which can control the flat cart to move forward, backward and stop. The flat cart is braked by electromagnetic brake motor, which is stable, reliable, safe to use and convenient to overhaul.Transfer Carts are a cost effective, safe and flexible load moving transporter to move loads from 1 to 500 tons. Perfect Transfer Carts produces solutions for the needs of businesses with the transfer carts. While the produced transfer carts can have Rail transfer carts or Trackless transfer carts (Multi-steering transfer carts).Rail transfer carts moving on a pre-placed rail track can be preferred especially for businesses that carry out regular load transfer from one point to another on a fixed line.Trackless transfer carts(Multi-steering transfer carts) with high maneuverability and without rail can perform transfers independently of the route.Transfer carts can operate on standard floors and do not require complex or permanent installation.In addition to flat ground, Transfer carts can also be driven on the ground with a certain slope range with a load.

Application Of Cable Drum Transfer Trolley On Rail

Cable drum rail transfer trolleys have several uses and are practical in a range of situations and industries. These transfer trolleys are made primarily to move huge items quickly and securely. The following are some typical uses for cable drum transfer trolleys on rail:

• Manufacturing: In manufacturing facilities, raw materials, finished goods, and materials for work-in-progress are moved between various production stations using cable drum transfer trolleys.
• Warehouse: Cable drum transfer trolleys are frequently used in warehouses to move cargo pallets.
• Construction sites: These transfer trolleys are used in construction to transport supplies, machinery, and tools throughout sizable job sites. Their sturdy build can withstand the rough terrain that is frequently encountered in construction operations.
• Shipbuilding and repair: Cable drum transfer trolleys are used in shipyards to move heavy products and components across the facility. They are necessary for the building and upkeep of vessels.
• Mining: These industrial transfer trolleys are used in mining operations to move big amounts of ore, minerals, and machinery underground and between different mining levels.
• Aerospace: To carry aircraft parts, engines, and assemblies through various production steps, aircraft manufacturing facilities use cable drum transfer trolleys.
• Automotive: These industrial transfer trolleys are used by automakers to move big parts including automobile bodies, chassis, and other heavy components along assembly lines.
• Power plants: In power plants, heavy machinery, transformers, and other equipment are moved for repair or installation using cable drum transfer trolleys.
• Steel mills: To handle and transport large steel coils, ingots, and other completed steel products, steel mills employ these industrial transfer trolleys.
• Paper mills: Cable drum rail transfer trolleys are used in the paper industry to transport big rolls of paper between storage spaces and processing equipment.
• Chemical and petrochemical plants: Within industrial facilities, they are used to transfer containers, equipment, and chemicals safely.
