Scissor Lifting Transfer car

Load Capacity : 1-1500 tons
Speed : 20 m/min or ad your needs
Certificate : SGS, ISO9001, SASO
Motors : PMAC / AC high efficiency motors
Wheels : Cast Steel Polyurethane Rubber Wheel
Movements : 360° rotation (Carouse) and crab movement (horizontal and diagonal movememnt )

We're here to help:

Easy ways to get the answers you need.

(※ Click this button to inquiry)

Share with :

Main Products

On-rail Transfer trolleys

Steel Wheels Automated Coil Transfer Car on Rails for Handling Heavy Duty 15T Rail Scissor Lift Cart - Remote Controlled for Factory Use Customized Metallurgy Plant Guided Transfer Carts Battery Operated Transfer Trolley Scissor Lifting Transfer car Factory Supply Electric Rail Transfer Vehicle Turntable Transfer Cart Die Transfer Trolley Battery Powered Abrasive Blasting Booth Rail Guided Cart Manual Transfer Cart Turntable Rail Transfer Cart Material Handing Rail Transfer Cart 25 Ton Low-Voltage Rail Distribution Electric Cart Large Turntable Car Ladle Transfer Cart / Car Coil Transfer Cart Trailing Cable Powered Transfer Cart Cable Drum Powered Transfer Cart Rail Powered Transfer Cart Factory Supply Manual Power Transfer Trolley for Heavy Material

Custom Transfer trolleys

Battery powered Cross Rail Transfer Cart For Factory And Construction Engineering die transfer cart Industrial trailer battery powered electric transport flat transfer car for transfer aluminum coils Bay to bay heavy loads electric powered steel coils transfer cart rail cart Battery powered hydraulic lifting transfer platform Battery operated transfer car bogie system on turntable transfer cart 30T Rubber Wheel Free Turning Steerable Transfer Car Heavy Loads Steel Mill Flatbed Transfer Table scrap bucket handling turning rail mounted trolley Automated Trackless Die Transfer Trolley On Cement on-rail heat resistant scrap metal handling system

Trackless Transfer trolleys

Omnidirectional die transfer cart to handle dies 1– 50 ton Steerable Electric Trackless Transfer Vehicle Industrial Tugger Trolleys OEM&ODM Transfer Cart / Industrial Trolley Custom Industrial Steel Structure Cable Drum Powered Transfer Wagon 20 ton heavy load electric battery trolley Professional Remote Control Trackless Transfer Cart Motorized Electric Injection Mould Trackless Transfer Cart Battery Operated Automatic Trackless Transfer Trolleys Heavy duty transportation electric flatbed transfer cart Industrial Heavy duty agv Trolley With Low Price

Industrial Trailers

Industrail Trailer 4 Whels 2 Ton tractor towed Platform battery powered Transfer Cart industry no power transfer flat trailer towed by tractor Heavy Duty Trailer Truck Tractor For Cargo Transfer Forklift Towing Industrial transfer carts trolley On Cement

Rail Flaw Detection Vehicle

Rail Bound Cart Portable Railway System Detection Vehicle

Need Help?

or Email us:

sale@perfte.com

Facebook

Our Factory

Overview
Technical Data
Application
Video
Inquiry

■ Overview

Core Functions: Combines lifting and transfer capabilities. Adjusts platform height via a scissor mechanism while enabling horizontal transportation of heavy loads, balancing flexibility and practicality.
Power & Control: Mainly hydraulic or electric-driven. Supports wireless remote control and local operation modes; some models allow adjustable speed for convenient and precise operation.
Load Capacity & Lifting Range: Offers a wide load range (5-50 tons commonly) with customizable lifting height (usually 30cm-1.5m), ensuring stable operation under full load.
Safety Design: Equipped with overload protection, emergency stop buttons, and anti-slip platforms. Some models feature obstacle avoidance to reduce operational risks.
Application Scenarios: Widely used in workshops, warehouses, steel plants, automotive manufacturing, etc. Suitable for transferring and loading/unloading molds, steel materials, palletized goods, heavy equipment, etc.

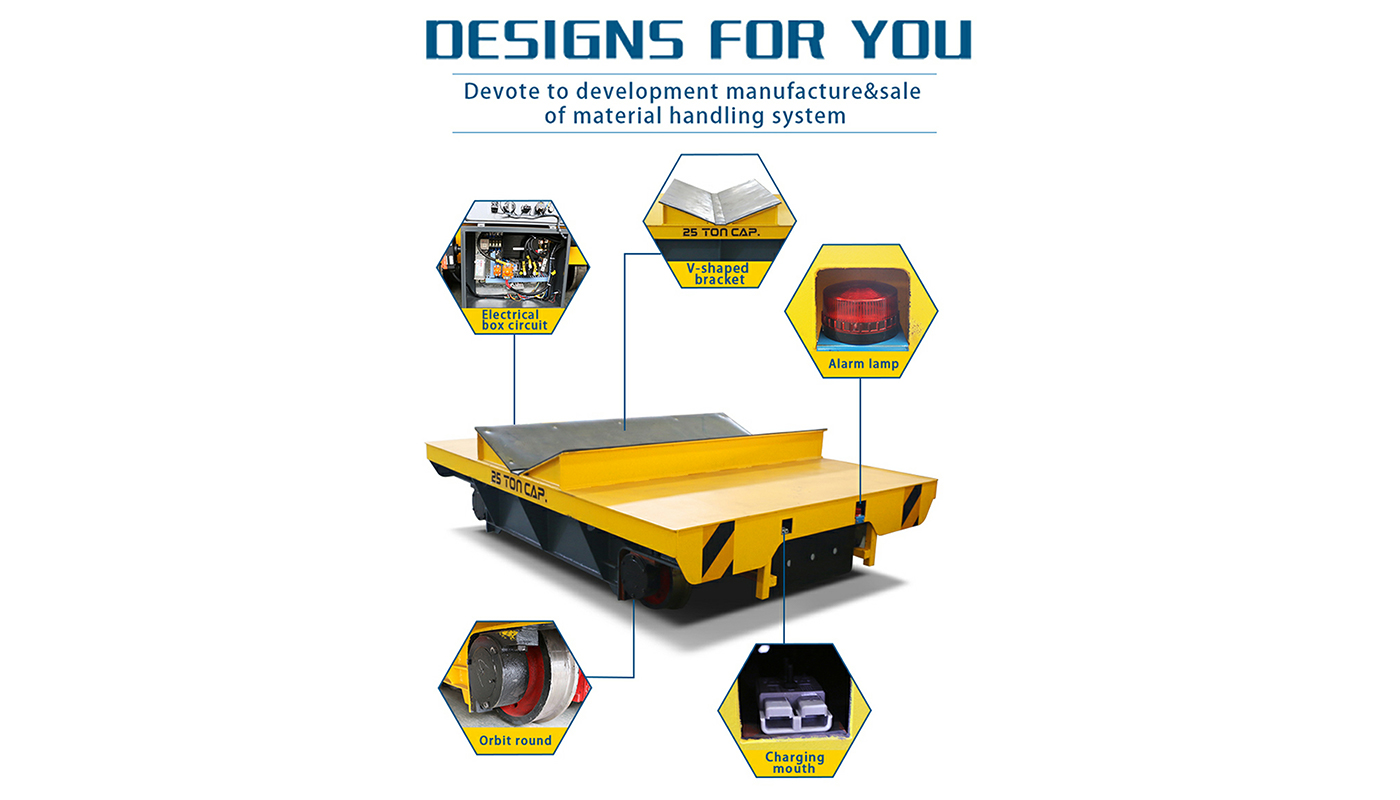

coil transfer cart

■ Technical Data

Modle	KPX-10T	KPX-30T	KPX-50T	KPX-80T	KPX-100T
Table Size (m)	3.62.00.5	4.52.20.6	5.52.50.65	6.02.60.8	6.52.80.9
Rail inner Gauge	1435mm	1435mm	1435mm	1800mm	2000mm
Wheel Dia.	350mm	400mm	500mm	600mm	600mm
Running Speed	0-20m/min	0-20m/min	0-20m/min	0-20m/min	0-20m/min
Motor Power	1.6kw	3.5kw	5kw	8kw	10kw
Capacity	180Ah	250Ah	330Ah	400Ah	440Ah
Volatge	48v	48v	48v	72v	72v
Max Wheel Load	42.6Kn	110.4Kn	174Kn	278.4Kn	343.8Kn
Reference weight	4.2t	6.8t	8t	12.8t	14.6t
Recommend Rail	P24	P38	P43	P50	P100

■ Application

Industrial Workshops: Used for transferring molds, workpieces, and production equipment between different stations, adapting to assembly lines, machining workshops, and welding workshops.
Warehouses & Logistics Centers: Facilitates loading, unloading, and transfer of palletized goods, heavy containers, and bulk materials, matching with shelves and conveyors for efficient logistics turnover.
Steel Plants & Metallurgical Industry: Transports steel coils, steel pipes, ingots, and other heavy metal materials, withstanding high-temperature and dusty harsh environments.
Automotive Manufacturing Plants: Applies to transferring auto bodies, engines, chassis, and large components, supporting production line connection and offline maintenance.
Construction Machinery Factories: Handles heavy parts such as excavator arms, crane components, and engineering machine bases, meeting the needs of heavy-load transfer in large equipment production.
Electronics & Electrical Factories: Transfers large electrical cabinets, transformers, and precision equipment, with stable operation to avoid damage to fragile components.
Pharmaceutical & Food Processing Plants: Used in clean workshops for transferring raw materials, finished product batches, and production equipment, complying with hygiene and pollution-free requirements.
Port & Cargo Terminals: Assists in short-distance transfer of heavy cargo, containers, and bulk goods between storage areas and loading/unloading points, improving cargo handling efficiency.
