■ Overview
Applications and Transfer Cart / Industrial Trolley
We offer top-tier industrial transfer carts / transfer cart that are ideal for multiple applications and industries. Our team of experts is dedicated to assisting you in finding the right solution for your application.
Applications for heavy load transfer carts include:
- Assembly line transporting
- Moving heavy machinery in factories or warehouses
Our solutions are ideal for industries such as:
- Manufacturing Assembly
- Aerospace
- Vehicle Manufacturing
- Factory Automation
Advantages of Perfect Transfer Cart / Industrial Trolley
At Perfect, we understand the requirements of an industrial manufacturer. That is why we offer transfer carts with a dedication to as many advantages as possible.
- Rotates within its own footprint unlike cranes, forklifts, or other conventional vehicles.
- Transfer loads up to 200,000 lbs.
- Eliminates first in/first out (fixed move paths).
- Minimal operational footprint that maximizes usable floor space.
- Because the cart fits in its own footprint, it can be used in conjunction with cranes (to get to spaces the crane can’t reach) and can go where forklifts don’t fit because their counterweight extends beyond the size of the load.
- Because the cart is battery operated, it can drive any path or in and out of areas compared to a rail move (tied to the rail line) or other fixed-path methods.
- Integrated lift system provides self-loading capability.
- Self-loading capability makes it possible to share the transfer cart with multiple payloads.
- Self-loading.
- No lifting required
- .
■ Technical Data
| Model | BXC-2t | BXC-20t | BXC-50t | BXC-100t | BXC-150t |  |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 1435 | 2000 | |
| Wheel Diameter | 270 | 350 | 500 | 600 | 600 | |
| Wheel Quality | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance (mm) | 50 | 50 | 50 | 75 | 75 | |
| Running Speed (min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power (kw) | 1 | 2.2 | 5 | 10 | 15 | |
| Battery Capacity | 180 | 180 | 330 | 440 | 600 | |
| Battery Voltage | 24 | 48 | 48 | 72 | 72 | |
| Running Time When Full | 4.32 | 4 | 3.3 | 3.2 | 2.9 | |
| Running Distance for one Charge (Km) | 6.5 | 4.8 | 4 | 3.8 | 3.2 | |
| Max Wheel Load | 14.4 | 77.7 | 174 | 343.8 | 265.2 | |
| Reference Weight (t) | 2.8 | 5.9 | 8 | 14.6 | 26.8 | |
| Recommend Rail Model | P15 | P24 | P43 | QU100 | QU100 |
■ Application

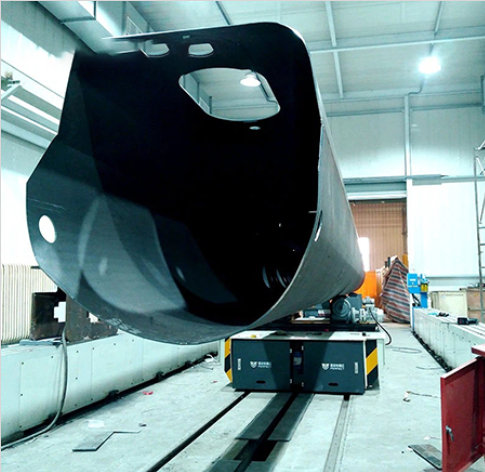

Widely used in manufacturing factories (handling heavy workpieces, finished products),
warehousing and logistics centers (palletizing goods, cargo shifting),
port terminals (container accessories, small ship equipment),
metallurgical mining (metal materials, mining equipment),
construction sites (transportation of building materials)
warehousing and logistics centers (palletizing goods, cargo shifting),
port terminals (container accessories, small ship equipment),
metallurgical mining (metal materials, mining equipment),
construction sites (transportation of building materials)
.
