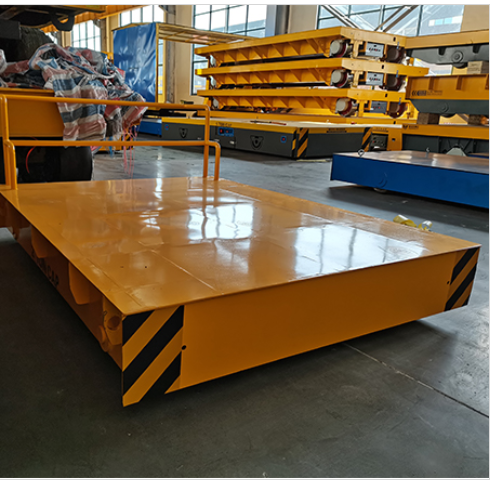

Manual Transfer Cart

  • Load Capacity : 1-1500 tons
  • Speed : 20 m/min or ad your needs
  • Certificate : SGS, ISO9001, SASO
  • Motors : PMAC / AC high efficiency motors
  • Wheels : Cast Steel Polyurethane Rubber Wheel
  • Application : Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops

We're here to help:

Easy ways to get the answers you need.

(※ Click this button to inquiry)
Share with :
  • battery powered transfer cart

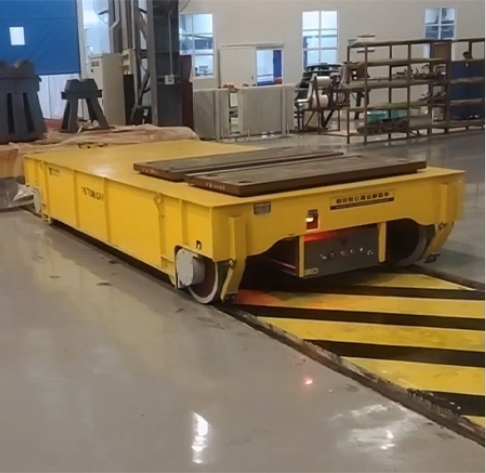

  • Transfer Cart 20 Ton

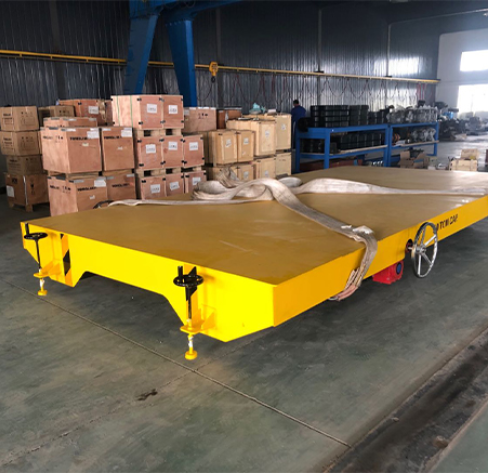

  • electric transport trolley

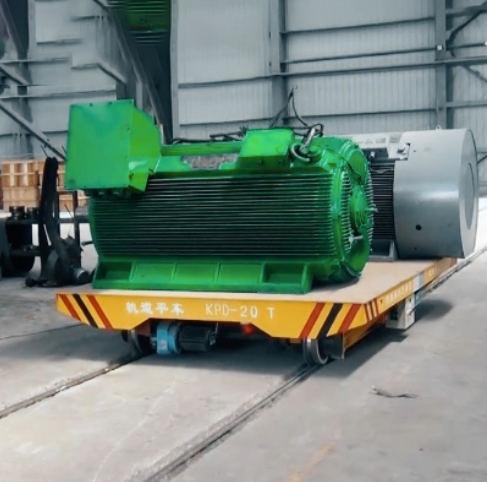

  • motorized flat cart

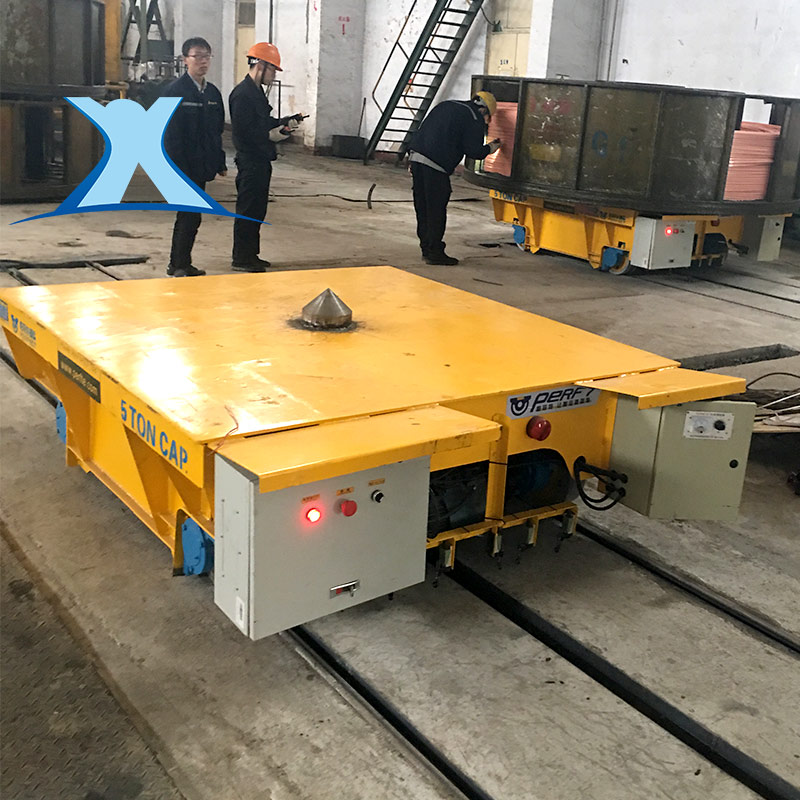

  • transfer cart on rail price
Main Products
On-rail Transfer trolleys
Custom Transfer trolleys
Trackless Transfer trolleys
Industrial Trailers
Rail Flaw Detection Vehicle

Need Help?

or Email us:

sale@perfte.com

Follow Us

Facebook Linkedin
■ Overview
 The towed transfer flat cart is sometimes called the manual transfer car or motorless transfer trolley. As a non-power transfer cart running on the rail, it can be manually powered or towed by other cars. In addition, the roller carrier, fence and other appliances are optional as required. If you need a transfer flat cart made with special dimensions, or for a particular application, we can satisfy your needs.

Manual transfer cart can be towed by pulling device run on rails, which is our common and patent product, the transfer cart can be towed by manpower or towed by other transfer trolleys including the forklift, winch, trailer and so on. and the manual transfer cart also can be towed together, which can not only transfer more material but also save the cost with competitive price, especially the large capacity,Perfect have rich experience to design with simple structure compared with other suppliers. Too many towing no power rail cart has been customized according to clients' requirement.According to the working site. you can choose the track or trackless transfer cart to work in with the tractor.

The manual transfer cart is driven by manual or other power machine .Boosting driven device and traction device is optional for convenience .According to the condition ,you can choose track or trackless transfer cart to work in with the tractor .

DESIGN PRINCIPLE:
In order to meet industrial handling demands, Perfect design the kind of manual rail cart, which not only make the handling more easier and safer, also can realize turning easily.What's more, the safe protection has been done in many aspects, which not only promote safety factor but also get a good assessment from our customers around the world.

APPLICATIONS OF NO POWERED RAIL FLAT CART:
This no power transfer cart can be applied in transfer heavy materials or equipment in many areas, such as foundry factory, warehouse, steel plant, aluminum factory, plastic pipes factory, metallurgy, shipyard, steel mills, coal, mining and processing industries, etc.

应用

■ Technical Data

Model BP-2T BP-10T BP-20T BP-30T BP-50T BP-63T BP-150T
Rated load (T) 2 10 20 30 50 63 150
length(l) 2000 3600 4000 4500 5500 5600 10000
Width(W) 1500 2000 2200 2200 2500 2500 3000
Height(H) 450 500 550 600 650 700 1200
Wheel Base (mm) 1200 2600 2800 3200 4200 4300 7000
Wheel Diameter(mm) Φ270 Φ300 Φ350 Φ400 Φ500 Φ600 Φ600
Ground Clearance (mm) 50 50 50 50 50 75 75
Max Wheel Load (KN) 14.4 42.6 77.7 110.4 174 221.4 265.2
■ Application
 Factory workshop: Short distance transportation of workpieces, molds, semi-finished products, flexible shuttle between equipment gaps, suitable for hardware, machinery and other workshop turnover.
Warehouse: move heavy pallets and storage cages, adapt to areas with limited power or need to avoid electric risks, assist in restocking and tallying.
Logistics transfer station: Short distance transfer of small and medium-sized containers, package containers, connecting loading and unloading stations, and compensating for the lack of flexibility of large equipment.
Construction site: transporting sand and gravel, prefabricated components, small building materials, adapting to complex ground conditions, without the need for temporary power supply, reducing deployment costs.
Metallurgical/chemical workshop: (customizable anti-corrosion version) converted into small steel billets and raw material barrels, manually operated to avoid electrical sparks, suitable for high safety requirements.
Maintenance workshop: move equipment accessories and heavy components closer to the maintenance station to reduce the need for lifting equipment.
