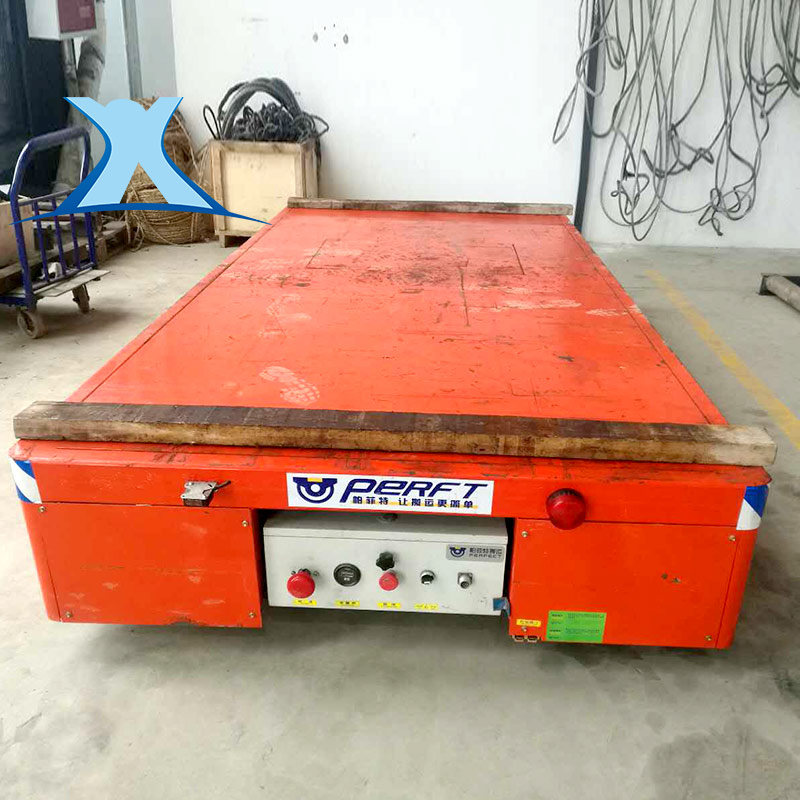

battery Transfer Cart

  • Load capacity : 5-500T Customized
  • Dimensions : Tailored to your specifications
  • Running speed : 0-20m/min
  • Working direction : Forward/Backward/Turntable/Lifting/
  • Power supply : Battery /Cable /Busbar
  • Grade ability : ≤3%

We're here to help:

Easy ways to get the answers you need.

(※ Click this button to inquiry)
Share with :
  • railcars
  • rail handling cart
  • 10t rail transfer cart
  • Transfer Cart 20 Ton
  • coil cart
Main Products
On-rail Transfer trolleys
Custom Transfer trolleys
Trackless Transfer trolleys
Industrial Trailers
Rail Flaw Detection Vehicle

Need Help?

or Email us:

sale@perfte.com

Follow Us

Facebook Linkedin
■ Overview
   -The rail-mounted battery-powered transport vehicle is a track-based industrial equipment designed for heavy material transportation. Powered by rechargeable batteries without the need for external power sources, it features a box girder frame and wear-resistant wheels, with a load capacity ranging from several tons to kilotons, enabling long-distance continuous operation. Equipped with wireless remote control, anti-collision, and emergency stop systems, the device ensures precise and safe operation. It can adapt to complex working conditions such as high temperatures and flammable or explosive environments, seamlessly facilitating the transfer of raw materials, finished products, and large equipment between workshops and warehouses. This helps enterprises enhance logistics efficiency and production safety.

First of all, the power system is one of the most core systems of the rail electric transport car. It provides the power required for the operation of the transport car and ensures the normal operation of the production line. The electric transport car is powered by a battery and uses a DC motor. It has a strong starting torque and starts smoothly. It can meet the needs of high- intensity work; at the same time. it also has the advantages of no pollution, low noise, environmental protection and energy saving. and is a very good power source.

Secondly, the safety system is also one of the necessary systems of the rail electric transport car. In the production line, safety is one of the most important factors. The rail electric transport car uses high-strength and wear-resistant materials to ensure the stability and safety of the transport car when running and stopping. Anti-collision buffers and emergency stop buttons are installed on the car body to ensure safety during operation. In addition. we can also design explosion-proof, moisture-proof. dust-proof and other safety devices according to the requirements of the production environment to ensure the safety of the transport car.

Finally. the control system is an important part of the rail electric transport car. which can ensure the accuracy of the operation and operation of the transport car. The control system can operate the transport car through wireless remote control or manual control. At the same time, the control system can also monitor the operating status of the transport car.detect abnormal conditions in time. and avoid unexpected situations.



In short, the three major systems of the rail electric transport car work together to ensure the stability and safety of the transport car operation. It has the characteristics of unlimited running distance, explosion-proof and turning. and plays an important role in industrial production.

■ Technical Data


Model



BDG-2t

BDG-20t

BDG-50t

 BDG-100t         BDG-150t

Rated Load(t)

2

20

50

100

150

Table Size(mm)

Length(L)

2000

4000

5500

6500

10000

Width(W)

1500

2200

2500

2800

3000

Heigth(H)

450

550

650

900

1200

Wheel Base(mm)

1200

2800

4200

4900

7000

Rail Inner Gauge(mm)

1200

1435

1435

2000

2000

Wheel Diameter(mm)

270

350

500

600

600

Wheel Quantity

4

4

4

4

8

Ground Clearance(mm)

50

50

50

75

75

Running Speed(min)

0-25

0-20

0-20

0-20

0-18

Motor Power(kw)

1

2.2

5

10

15

Battery Capacity

180

180

330

440

600

Battery Voltage

24

48

48

72

72

Running Time When Full Load

4.32

4

3.3

3.2

2.9

Running Distance for One Charge(Km)

6.5

4.8

4

3.8

3.2

Max Wheel Load(KN)

14.4

77.7

174

343.8

265.2

Reference Weight(t)

2.8

5.9

8

14.6

26.8

Recommended Rail Model

P15

P24

P43

QU100

QU100

1.Load capacity :table size and rail gauge can be customized
2.Options : Remote radio control (imported or made in China )
3.Automatic stop when detecting obstacle or person ,limit switches
(to limit travel)
4.Battery type ( Free of maintenance battery ,lithium battery ,explosion -proof battery ,and Anti -high temperature battery )
5.motor (DC motor with brush and DC motor brushless )
6.Electrical parts (imported or made in china )



■ Application
 Steelmaking workshop: used for transporting molten steel ladles, scrap steel raw materials, and steelmaking auxiliary materials, adapted to high temperature environments, relying on precise navigation to avoid collisions with equipment such as converters and continuous casting machines; ​
Continuous casting/rolling area: Transport billets and slabs to the rolling mill, or transport finished steel coils/plates after rolling to meet heavy load and continuous production needs; ​
Coking plant: transporting coke to blast furnaces, or transferring coal materials, tar and other materials, can be equipped with an explosion proof system to adapt to flammable environments; ​
Ironmaking blast furnace area: Transport iron ore and sintered ore to the blast furnace silo, support linkage with the batching system, and achieve automated supply of raw materials; ​
Finished product warehouse/logistics area: Sort and stack finished steel products (such as section steel and steel pipes), connect with intelligent warehousing systems, improve cargo turnover efficiency, and reduce manual handling. ​
