Steerable electric trackless transfer trolley can be used for coil items, transformer, shaft, drum, steel ladle, steel structure, steel pipe, mold, beam, container, heavy equipment, aluminum product, compressor, polycrystalline silicon, motor, building materials, scrap, pallet and other material transport in the factory.
Application Field Of Transfer Carts: The Heavy Material Handling In Brick Factory, Kiln Factory, Refractory Factory, Ceramic Factory, Roasting Factory, Flour Mill, Beneficiation Plant, Foundry, Chemical Plant, Charge Plant, Breeding Farm, Etc.
Packing & Shipping -Application Field Of Transfer Carts: The Heavy Material Handling In Brick Factory, Kiln Factory, Refractory Factory, Ceramic Factory, Roasting Factory, Flour Mill, Beneficiation Plant, Foundry, Chemical Plant, Charge Plant, Breeding Farm, Etc.

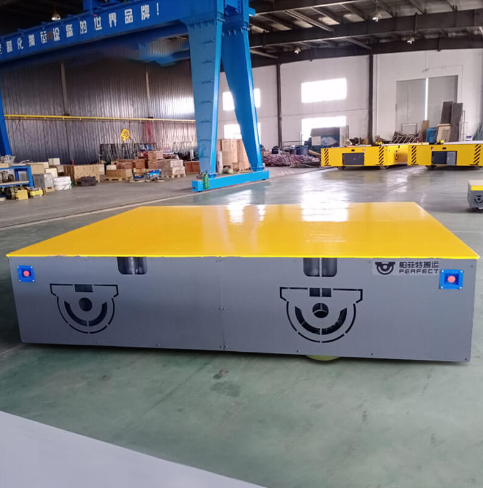

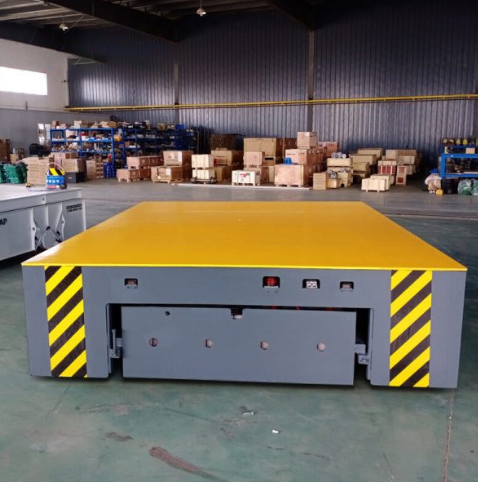

Steerable electric trackless transfer trolley is a kind of trackless material handling car.
* It is powered by storage battery, which is ideal for moving materials, dies, coils or working in progress throughout a manufacturing facility without limitations to track length and distance.
* The cart is installed and equipped with battery and intelligent charger respectively.
* There is PLC program and speed controller which enables the transfer cart to move forward,backward, turn left or right and,adjust speed accordingly.
* Our standard heavy-duty design is capable of transferring 50 tons at 25m per minute with small turning radius.
• Workshop: transport heavy machinery or equipment;
• Paper industry: handling paper roll;
• Heavy manufacturing industry: Injection Molding transfer;
• Painting and blasting room: transfer workpiece;
• Iron, Steel, Tube Manufacturing;
• Fabricated Structural Metal;
• Plate Work;
• Metal Heat Treating;
• Mining Equipment Manufacturing;
• Industrial Mold;
• Foundry;
| Mold | 5T | 10T | 15T | 20T | 30T | |
| Rated Load(T) | 5 | 10 | 15 | 20 | 30 | |
| Table Size(mm) | 2500*1500 | 3000*2000 | 3200*2000 | 4000*2000 | 5000*2200 | |
| Height(mm) | 600 | 700 | 750 | 750 | 800 | |
| Wheel Quantity | 4 | 6 | 8 | 8 | 12 | |
| On cement floor | Tire Specification | 305*165 | 559*254 | 559*356 | 22*9-10 | 22*9-10 |
| Tire Material | Polyurethane Solid Wheel, Press-on Solid Tire, Air Tire | |||||
| On rail | Rail Inner Gauge(mm) | 1200 | 1435 | |||
| Wheel Material | LD steel wheel, Angel box wheel | |||||
| Frame Material | Q235 | Q345 | ||||
| Color | Customized | |||||
| Speed(km/h) | 0-20 | 0-15 | ||||
