| Model | 2T | 20T | 50T | 100T | 150T | |
| Rated load(T) | 2 | 20 | 50 | 100 | 150 | |
| Table size(mm) | length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
| Height(H) | 450 | 550 | 650 | 900 | 1200 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 | |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 | |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power(kw) | 1 | 2.2 | 5 | 10 | 15 | |
| Battery Capacity | 180 | 180 | 330 | 440 | 600 | |
| Running Time When Full Load | 4.32 | 4 | 3.3 | 3.2 | 2.9 | |
| Running Distance for One Charge(Km) | 6.5 | 4.8 | 4 | 3.8 | 3.2 | |
| Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | 265.2 | |
| Reference Weight(t) | 2.8 | 5.9 | 8 | 14.6 | 26.8 | |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 | |
Application & Performance Advantages

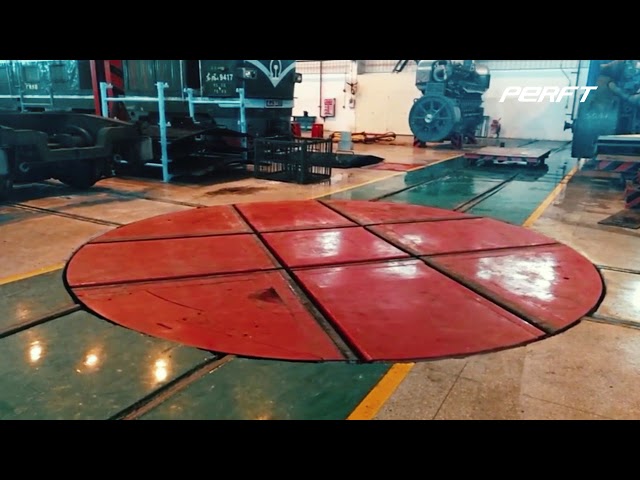

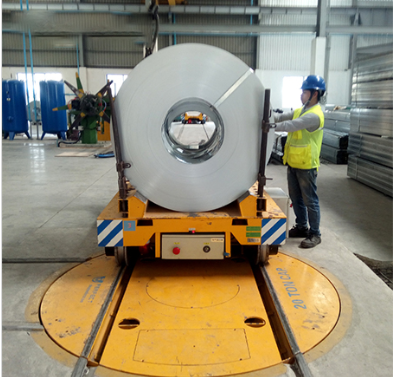

Versatile Track Compatibility: The cart is well-suited for diverse track layouts, including circular rails, vertical rails, and cross rails-adapting to complex factory configurations and addressing varied transport needs.
Superior Operational Performance: It operates with smooth, low-vibration movement, ensuring stable transport of vehicles even under heavy loads. Additionally, its high rail alignment accuracy eliminates gaps or misalignment, preventing disruptions to the transfer process.
Automation Capability: For enhanced efficiency and reduced manual intervention, a PLC (Programmable Logic Controller) can be integrated. This enables fully automated electrical operation, aligning with smart factory workflows and minimizing operational errors.
