30T Rubber Wheel Free Turning Steerable Transfer Car

  • Load Weight : 1t-50t
  • Cart Travel Speed : Up to 25m/min or (plant safety standard)
  • Load Size/Shape : Customer Supplied
  • Battery Voltage : 24V/36V/48V/72V
  • Battery Charger : On board charging; free-floor standing charger
  • Safety Equipment : lights, E-stop, bumpers and laser,horns, sensors etc

We're here to help:

Easy ways to get the answers you need.

(※ Click this button to inquiry)
Share with :
  • steerable-transfer-car-on-cement-floor

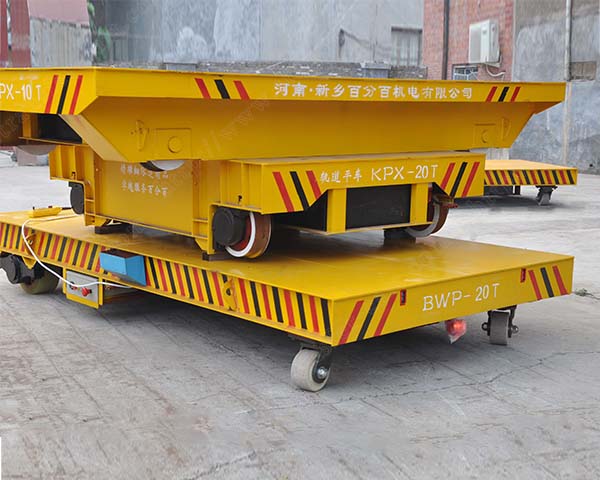

  • 20t-transfer-vehicle-on-shop-floor

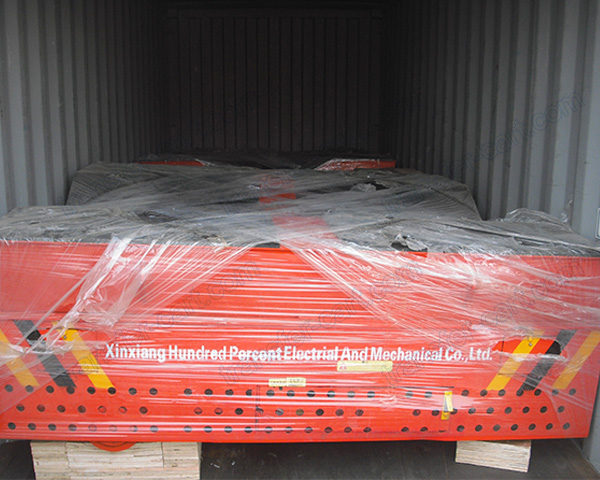

  • steerable-coil-transfer-car

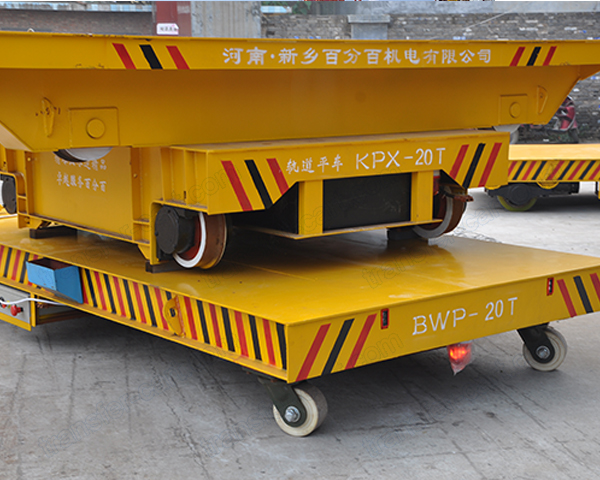

  • trackless-towed-cart
  • coil-transfer-cart
Main Products
On-rail Transfer trolleys
Custom Transfer trolleys
Trackless Transfer trolleys
Industrial Trailers
Rail Flaw Detection Vehicle

Need Help?

or Email us:

sale@perfte.com

Follow Us

Facebook Linkedin
■ Overview

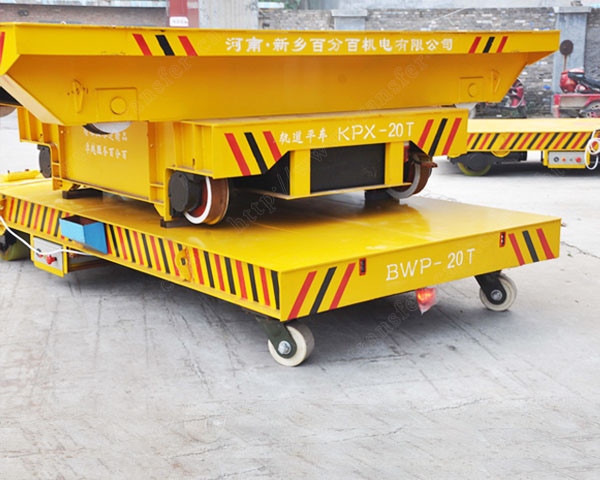

30T Rubber Wheel Free Turning Steerable Transfer Car


Product Brief

* The steerable transfer cart series is a kind of trackless material handling car.
* It is powered by storage battery, which is ideal for moving materials, dies, coils or working in progress throughout a manufacturing facility without limitations to track length and distance.

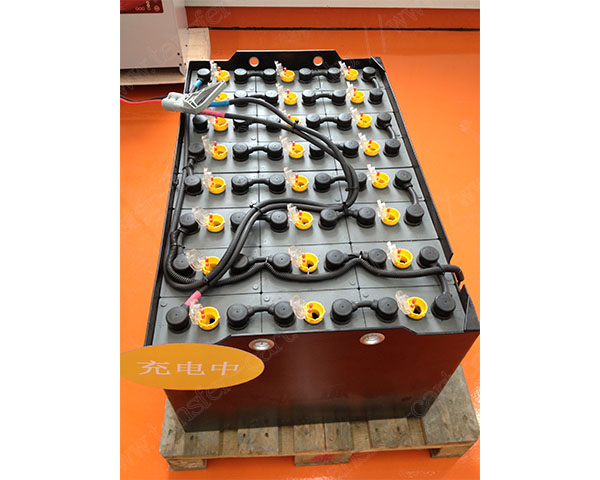

* The cart is installed and equipped with battery and intelligent charger respectively.
There is PLC program and speed controller which enables the transfer cart to move forward,backward, turn left or right and,adjust speed accordingly.
* Our standard heavy-duty design is capable of transferring 50 tons at 25m per minute with small turning radius.

About Us

 14 years manufacturing experiences.
• Our products have achieved CE & SGS certificates; We also passed ISO9001 certification.
• Production Capacity: 600 sets per year.
• For all the transfer trolley, they all can be customized.
• Experienced engineers, we've got a patent for steerable transfer car on cement.





■ Technical Data
Important Technical Information:

Model BWP-5t BWP-12t BWP-30t BWP-40t BWP-80t
Rated Load(t) 5 12 30 40 80
Table Size(mm) Length(L) 3500 4000 4500 5000 6000
Width(W) 2000 2000 2200 2500 2600
Heigth(H) 500 550 600 750 800
Wheel Diameter(mm) Ф300 Ф350 Ф400 Ф450 Ф600
Wheel Quantity 4 4 4 4 8
Running Speed(m/min) 0-25 0-20 0-20 0-20 0-18
Battery Voltage(V) 36 48 48 72 72
Running Time When Full Load 5.4 4.3 3.3 3.6 2.9
Max Wheel Load(KN) 25.8 64.5 174 278.4 265.2
Reference Weight(t) 3.6 5.2 7.2 8 12.8
Recommended Rail Model P18 P24 P38 P43 under developpment

Notes:
1, Effective solution for transfer dies, materials on cement floor.
2, Double way moving and 360 degree turning.
3, Short braking distance and minimum turning radius.
4,With no rails.






■ Application
Product Usage:
Steel mill: transferring steel products such as steel ladles, billets, coils etc, from one location to another;
Workshop: transport heavy machinery or equipment;
• Paper industry: handling paper roll;
• Heavy manufacturing industry: Injection Molding transfer;
• Painting and blasting room: transfer workpiece;
• Iron, Steel, Tube Manufacturing;
• Fabricated Structural Metal;
• Plate Work;
• Metal Heat Treating;
• Mining Equipment Manufacturing;
• Industrial Mold;
• Foundry;
