Home > Products > On-rail Transfer trolleys

Cable Reels Powered Material Handling transfer cart Equipment on Rail Transfer Trolleys

  • Model : BJT
  • Running Speed(m/min) : 30m/min(adjustable)
  • Certificate : CE ISO9001 SGS
  • Capacity : 1-300T
  • Power supply : cable reel / drum
  • Customized : size / color

We're here to help:

Easy ways to get the answers you need.

(※ Click this button to inquiry)
Share with :
  • cable-reels-transfer-trolley
  • cable-drum-transfer-trolley
  • 30t-cable-powered-vehicle
  • cable-towed-transfer-trolley
  • cable-car-and-guide-wire-frame
Main Products
On-rail Transfer trolleys
Custom Transfer trolleys
Trackless Transfer trolleys
Industrial Trailers
Rail Flaw Detection Vehicle

Need Help?

or Email us:

mia@perfte.com
■ Overview
Product Introduction
1.The cable reels transfer trolley is widely used in manufacturing factory to transport heavy cargoes of steel coils and sheets, steel bars, metal casting and forging, machine processing pieces,etc.
2.Cable reels transfer trolley applied in heavy manufacturing industry, such as steel mill, cement plant, injection molds, etc.
3.Cable reels transfer trolley is also suitable for shipbuilding, sand blast room, painting booth, etc.

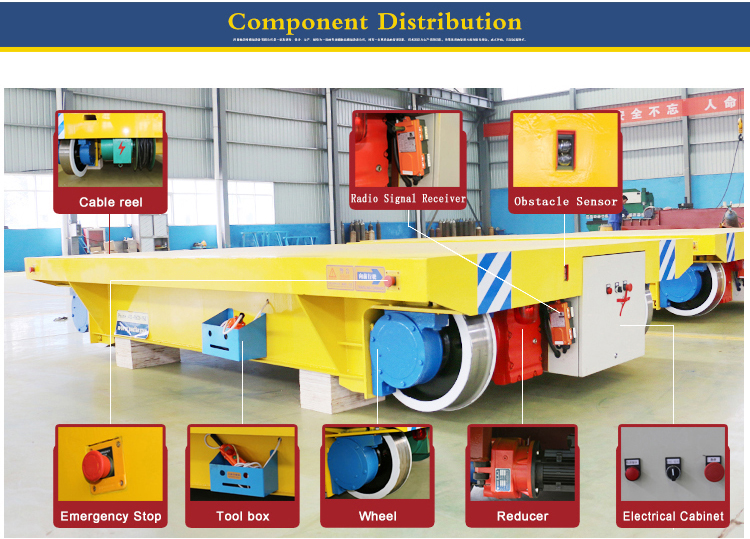

Features of cable drum powered rail car

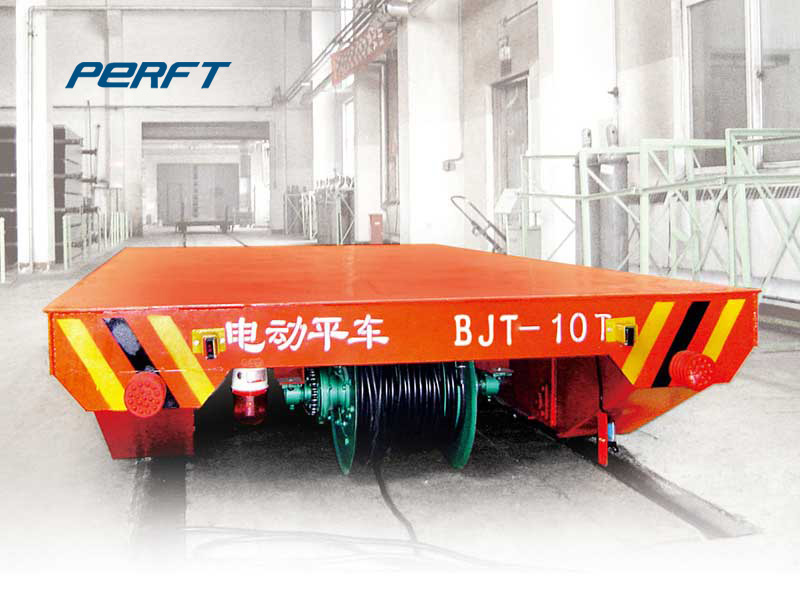

1. It is cable reel powered, other options such as battery, festoon cable, busbar, low-voltage rails, etc.
2. It is box beam structure, steel wheel. And the material of wheel is cast steel 55.
3. Safety equipment: E-stop button, sound and light alarm, limit switch, dead man control, etc.
4. The capacity ranging from 1-300 tons, and the dimensions (length & width) can be made as per your needs.
5. The flat surface is flat decking, coil holder can be installed for your special use.
6.For other special needs, we can design the transfer trolley for you.
■ Technical Data
Technical Parameters for Heavy Equipment Rail Car
Model BJT-2t BJT-5t BJT-10t BJT-16t BJT-20t BJT-25t
Rated Load(t) 2 5 10 16 20 25
Table Size(mm) Length( L) 2000 3500 3600 4000 4000 4500
Width( W) 1500 2000 2000 2000 2200 2200
Heigth( H) 500 550 550 600 600 650
Wheel Diameter(mm) Ф270 Ф300 Ф300 Ф350 Ф350 Ф400
Wheel Quantity 4 4 4 4 4 4
Running Speed(m/min) 25 25 25 20 20 20
Motor Power(Kw) 0.8 1.5 1.5 2.2 2.5 3
Running distance(m) 25 25 25 25 30 30
Max Wheel Load(KN) 14.4 25.8 42.6 64.5 77.7 94.5
Reference Weight(t) 2.5 3.5 4 5.2 5.6 6.2


■ Application
Application of Cable Electric Rail Car
The cable reels transfer trolley has a wide range of transportation fields, such as steel coils and sheets, steel tubes and pipes, heavy mills, steel bars, molten steel bucket, metal forging and casting pieces.
Custom Design for Special Requirements We have a professional research and design team with 14 years' manufacturing experience. According to customer's special demand, transfer car with special function can be manufactured, for example, the anti-high temperature ladle car, the turning car which can make a certain turning on rails, the coil transfer car which has a specially designed table for coils, hydraulic lifting transfer car which can load and unload heavy cargoes automatically.
