Introduction of electric tractless carts assembly structure and Customization



Assembly structure:



Usually, the big bottom frame of the trackless carts adopts welded structure, which mainly consists of side beams, pillow beams, big crossbeams, small crossbeams and floors, etc. Electric can also be customized for its underframe structure according to the user's use needs, which will have an impact on the price of the trackless carts. Steel ladle carts is also a kind of electric carts, its big bottom frame material is mainly low alloy structural steel, pillow beam under cover and web plate using high strength steel.

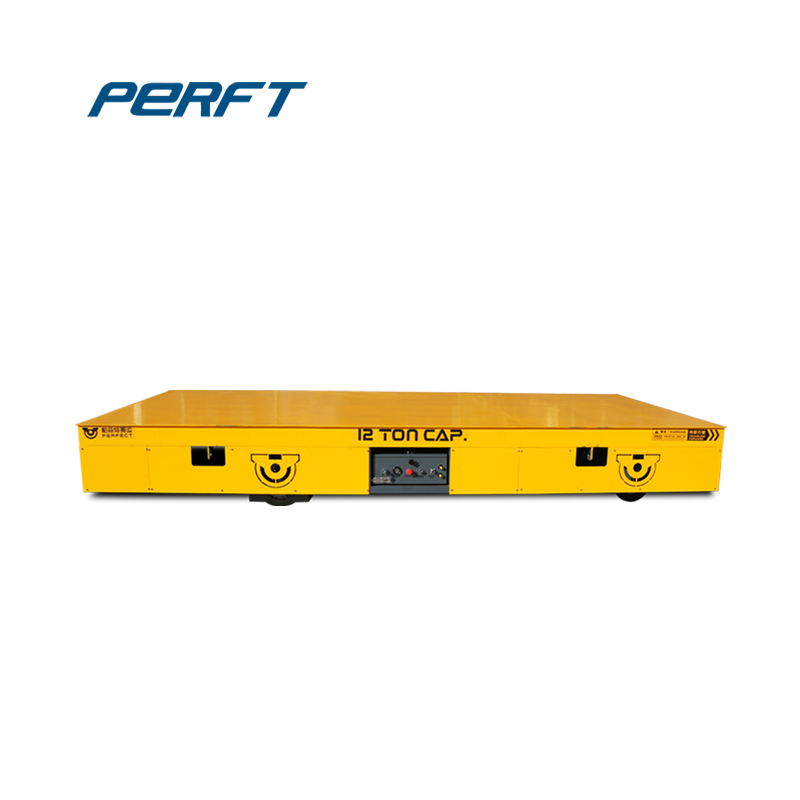

electric trackless carts

Customization:

electric trackless carts are mainly customized according to customer needs.When we customize the bottom frame structure of the trackless carts, we can calculate it according to the formula. The model takes into account the symmetry of the large bottom frame of the trackless carts in its structure and load, and takes the 1/4-mode electric carts model for calculation. Since the railless carts large underframe is mainly made of welded plates, four-node plate and shell cells are used in the mesh division, and triangular cells are used locally for the transition. The discretization of the model results in an overall cell scale of 30mm and local cell encryption.

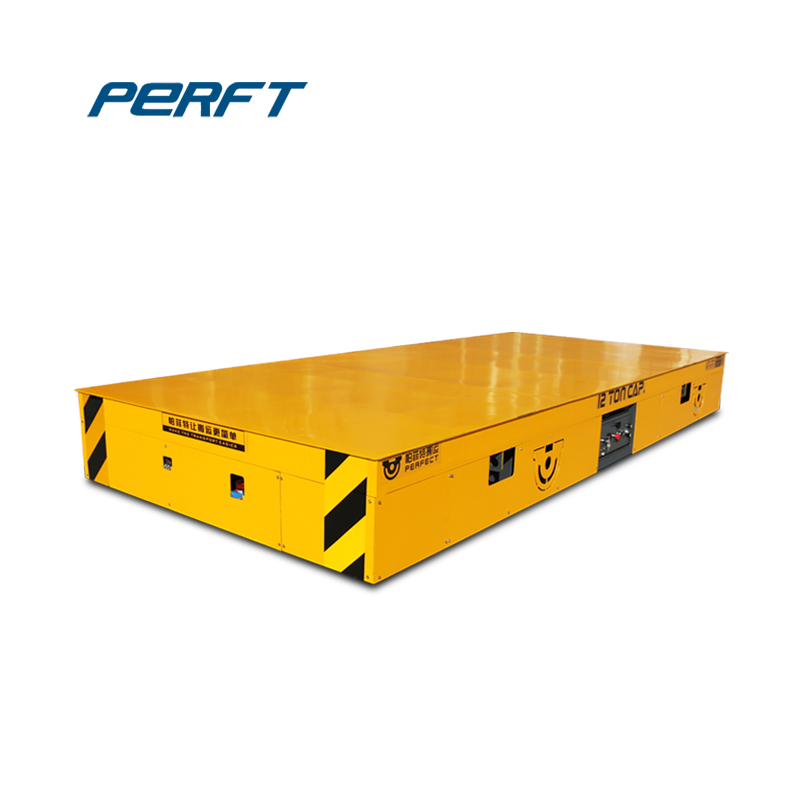

electric trackless carts

Henan Perfect Handling Equipment Co., Ltd. is a chemical company that focuses on handling trucks. We can customize the production of non-standard trucks according to the production process and the characteristics of the customer's company, so as to improve the production efficiency and the degree of automation and reduce the production cost.
